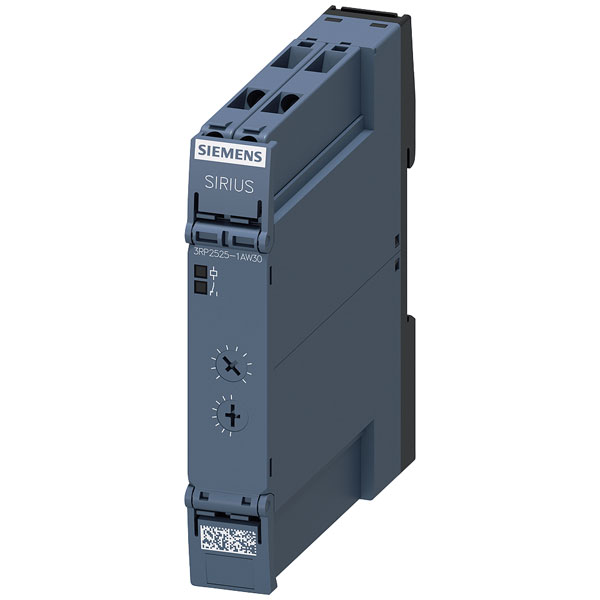

The Siemens 3RP2525-1AW30 is a multifunctional time delay relay suitable for DIN rail mounting. It features surge protection and can be used in applications such as staircase lighting control and delayed switching operations. This reliable relay is designed for various timing and delay functions in residential, commercial, and industrial settings.
| Type |
TDR |
| Clock function, starting with pause, variable |
FALSE |
| Clock function, starting with pulse, variable |
FALSE |
| Complete with socket |
N/A |
| Degree of protection (IP) |
N/A |
| Depth |
90mm |
| Dim |
(W x H x D) 17.5 x 100 x 90 mm |
| Durability |
1000 0000 |
| Electrical lifespan |
100000 |
| Function delay on de-energization |
FALSE |
| Function delay-on energization |
TRUE |
| Function flashing, starting with pause, fixed time |
FALSE |
| Function flashing, starting with pulse, fixed time |
FALSE |
| Function floating contact on de-energization |
FALSE |
| Function floating contact on energization |
FALSE |
| Function pulse shaping |
FALSE |
| Function star-delta |
FALSE |
| Height |
100mm |
| IP Rating |
IP20 |
| Material contact |
N/A |
| Material of contact insert |
N/A |
| Material of contact surface |
N/A |
| Max. operating voltage |
240V |
| Max. starting current |
N/A |
| Maximum Temperature |
+60°C |
| Min. operating voltage |
12V |
| Min. temperature |
-25°C |
| Misc Attribute |
3RP2525-1AW30 |
| Nominal Current |
N/A |
| Number of outputs, delayed, change-over contact |
1 |
| Number of outputs, delayed, normally closed contact |
0 |
| Number of outputs, delayed, normally open contact |
0 |
| Number of outputs, undelayed, change-over contact |
0 |
| Number of outputs, undelayed, normally closed contact |
0 |
| Number of outputs, undelayed, normally open contact |
0 |
| Operating Voltage |
12 - 240 V |
| Operating voltage AC 50 Hz |
N/A |
| Operating voltage AC 60 Hz |
N/A |
| Operating voltage DC |
N/A |
| Outputs, reversible delayed/undelayed |
FALSE |
| Pluggable on auxiliary contact block |
FALSE |
| Rated control supply voltage AC 50 Hz |
12 - 240V |
| Rated control supply voltage AC 60 Hz |
12 - 240V |
| Rated control supply voltage DC |
12 - 240V |
| Relay technology category according to IEC 61810-7 |
N/A |
| Remote operation possible |
FALSE |
| Suitable as remote control |
FALSE |
| Suitable for DIN rail (top hat rail) mounting |
TRUE |
| Suitable for front mounting |
FALSE |
| Time range |
0.05 - 360000s |
| Type of electric connection |
Screw connection |
| Voltage type (operating voltage) |
N/A |
| Voltage type for actuating |
AC/DC |
| Width |
17.5mm |
| With plug-in socket |
TRUE |
| With semiconductor output |
FALSE |
