Siemens 3RH29111FA22 SIRIUS Auxiliary Switch 10 A 2 NO+2 NC screw terminal

Image Representative of Range

Siemens 3RH29111FA22 SIRIUS Auxiliary Switch 10 A 2 NO+2 NC screw terminal

Siemens
Order Code:

06-8261

Brand: Siemens MPN: 3RH29111FA22 EAN-13: 4011209878174
Qty Unit Price (Ex VAT)
1+ £14.63
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
42 in stock, despatched in 4 working days

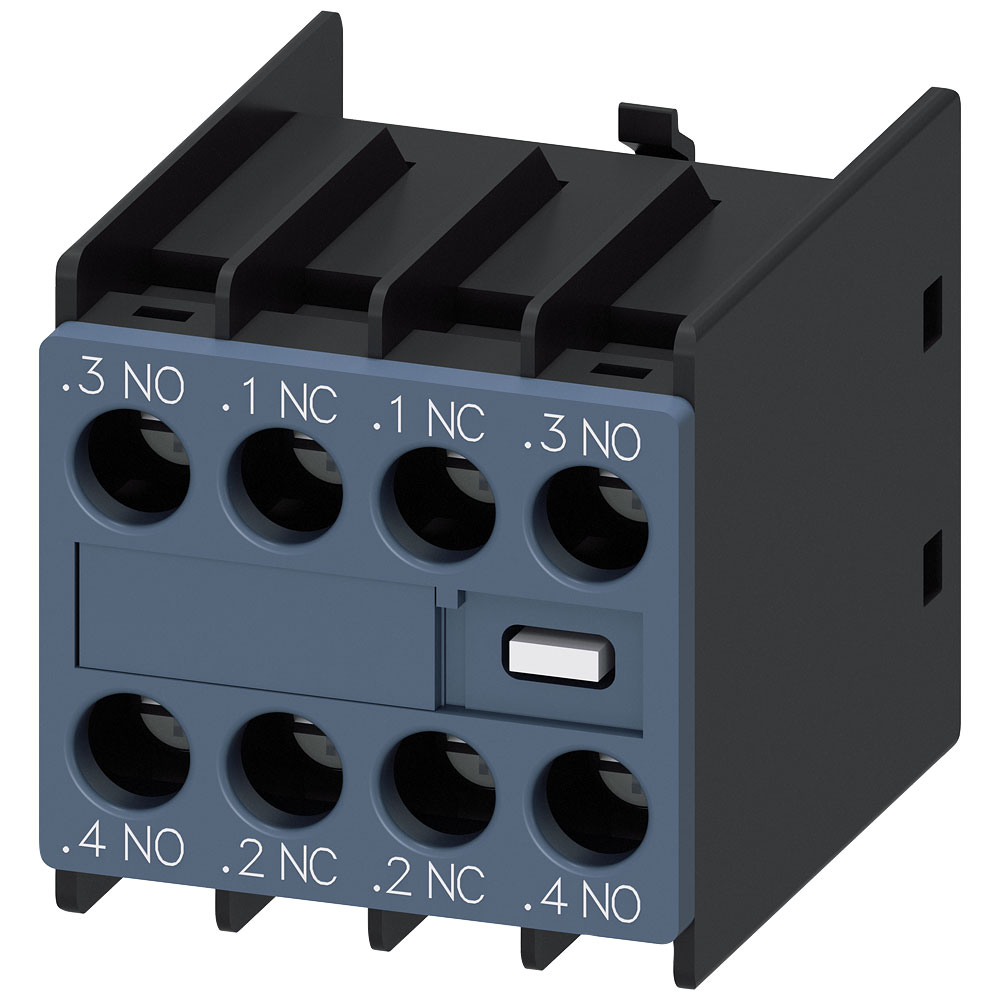

The Siemens 3RH2911-1FA22 auxiliary switch module is designed for use with electrical contactors, offering robust switch functionality rated at 10 A. It enhances the capabilities of Siemens contactors by providing additional switching functions, making it suitable for complex control circuits. Common applications include automation systems, machine tool control, and industrial switching operations.
Type Auxiliary switch module
Connection Screw terminal
Current load 10A
Depth 43.7mm
Dim (W x H x D) 36 x 37.5 x 43.7 mm
Durability 1.0E7
Electrical lifespan 200000
Height 37.5mm
IP Rating IP20
Lamp holder None
Max. temperature +60°C
Min. temperature -25°C
Misc Attribute 3RH2911-1FA22
Model Top mounting
Mounting Method Other
Mounting Type Front
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 2
Number of contacts as normally open contact 2
Number of fault-signal switches 0
Number of Pins 4-pin
Rated operation current Ie at AC-15, 230 V 6A
Type of electric connection Screw connection
Width 36mm
