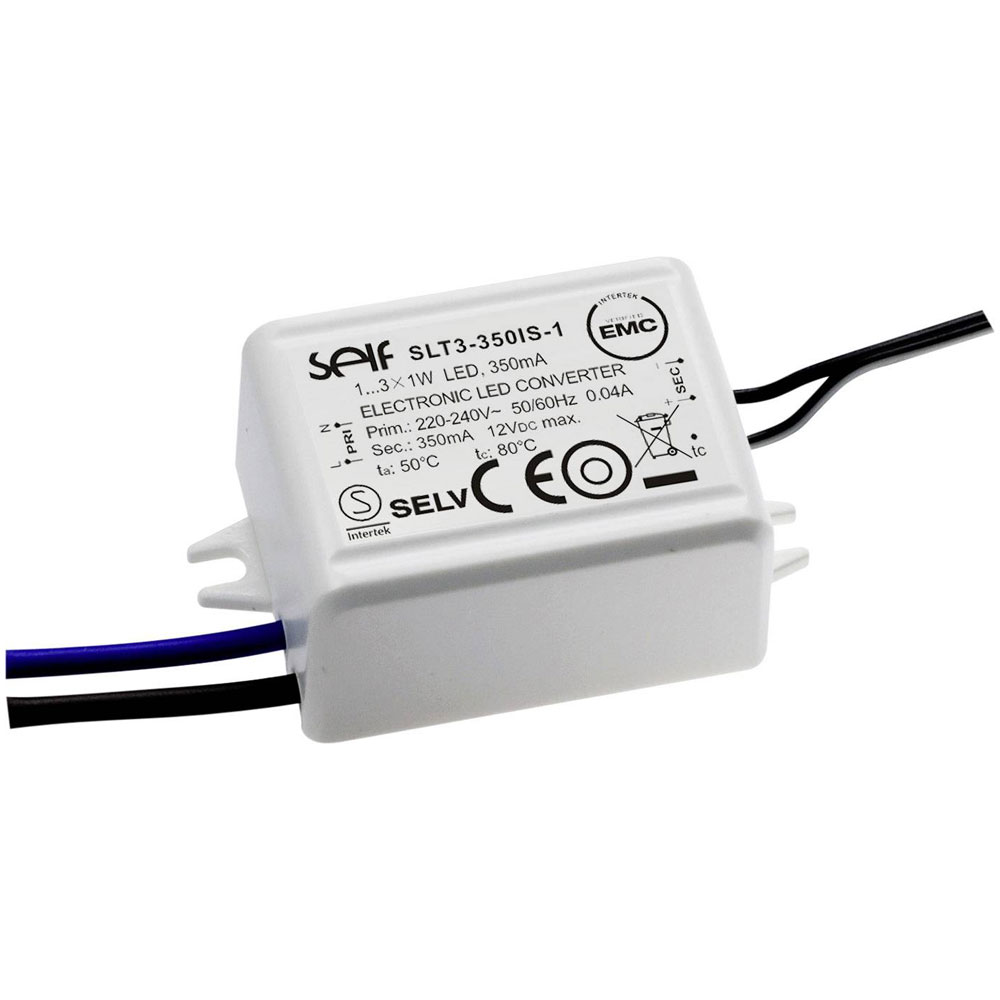

Self Electronics SLT3-350IS-1 LED Driver 3.15W 350mA Surge Protection

Self Electronics
Order Code:

10-5695

Brand: Self Electronics MPN: SLT3-350IS-1 EAN-13: 4021087039444
Qty Unit Price (Ex VAT)
1+ £6.40
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
116 in stock, despatched in 4 working days

The Self Electronics SLT3-350IS-1 LED driver provides a constant current output of 350 mA with a power rating of 3.15 watts and a voltage range from 3.0 to 9.0 V DC. It features surge protection and overvoltage protection, and is approved for use on furniture. This LED driver is ideal for non-dimmable LED applications such as lighting for display cabinets or decorative furniture.
Type LED driver
Connection Open end cable
Dim (L x W x H) 50.00 x 30.00 x 20.00 mm
Factory colour White
Height 20.00mm
Input voltage (max.) 264V AC
IP Rating IP20
Length 50.00mm
Max. output current 350mA
Max. power 3.15W
Max. temperature 50°C
Min. input voltage 198V AC
Min. temperature -20°C
Misc Attribute 1 Constant current
Misc Attribute 2 Synchronised
Number of Inputs 1
Number of Outputs 1
Operating Current 50mA
Operating Voltage 230V AC
Output current (max.) - rounded 350mA
Output current (min.) 350mA
Output voltage (max.) 9.0V DC
Output voltage (min.) 3.0V DC
Power (min.) 1.5W
Power range 1.5 up to 3.15 W
Test mark CE; SELV,; MM; Intertek
Width 30.00mm
