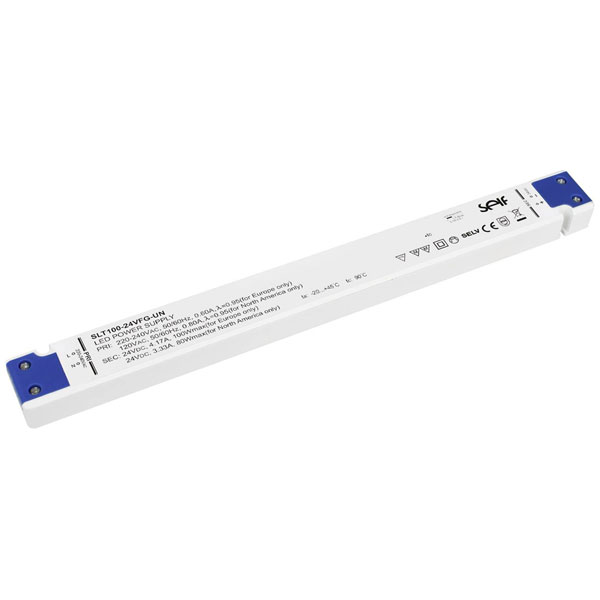

Self Electronics SLT100-24VFG-UN LED Driver 100W 24V Surge Protection

Self Electronics
Order Code:

10-5677

Brand: Self Electronics MPN: SLT100-24VFG-UN EAN-13: 4021087039697
Qty Unit Price (Ex VAT)
1+ £33.87
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched same dayBack-order availability date - 10/12/2025

Self Electronics' SLT100-24VFG-UN LED driver is a constant voltage power supply offering 100 W at a 24.0 V DC output and is approved for use on furniture. This device ensures surge protection and overvoltage safety but is not dimmable. It is ideal for powering LED strips and other non-dimmable LED applications.
Type LED driver
Connection Screw terminal
Dim (L x W x H) 298.00 x 29.80 x 16.50 mm
Height 16.50mm
Input voltage (max.) 264V AC
IP Rating IP20
Length 298.00mm
Max. output current 4.17A
Max. power 100W
Max. temperature 45°C
Min. input voltage 108V AC
Min. temperature -20°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Synchronised
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 4.17A
Output current (min.) 0A
Output voltage (max.) 24.0V DC
Output voltage (min.) 24.0V DC
Power (min.) 0W
Power range 0 up to 100 W
Test mark CE; SELV, MM; ENEC, UL
Width 29.80mm
