Self Electronics SLD75-12VL-E LED Transformer 75W 12V DC Dimmable Furniture Safe

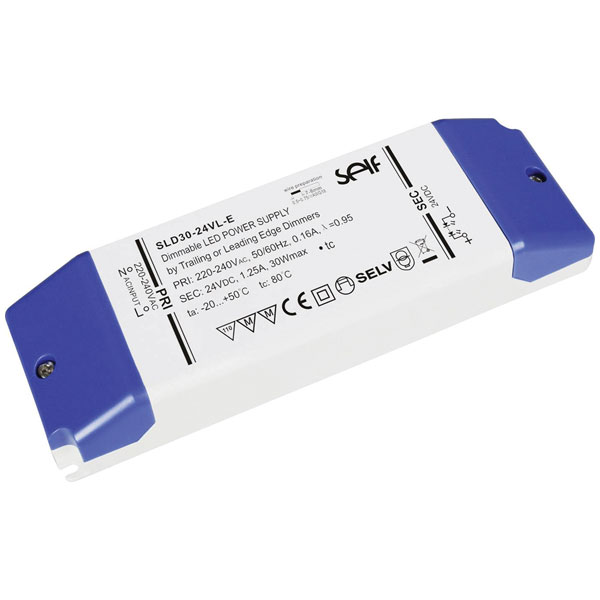

Image Representative of Range

Self Electronics SLD75-12VL-E LED Transformer 75W 12V DC Dimmable Furniture Safe

Self Electronics
Order Code:

10-5672

Brand: Self Electronics MPN: SLD75-12VL-E EAN-13: 4021087039734
Qty Unit Price (Ex VAT)
1+ £50.31
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
43 available to back orderBack-order availability date - 10/01/2026

The Self Electronics SLD75-12VL-E LED transformer provides a constant voltage of 75 W and outputs between 1 - 6.25 A at 12 V DC. This dimmable transformer is approved for use on furniture and includes surge protection. It is typically used to power LED strips and other LED lighting applications.
Type LED transformer
Output Voltage 12V DC
Max Output Power 75W
Output Current 1A
Input Voltage 264V AC
Connection Screw terminal
Dimensions (L x W x H) 185 x 60 x 31 mm
Height 31mm
IP Rating IP20
Length 185mm
Max. output current 6.25A
Max. temperature +45°C
Min. input voltage 198V AC
Min. temperature -10°C
Misc Attribute Constant voltage
Number of Inputs 1
Number of Outputs 1
Protection Class II
Test mark CE; SELV; MM; ENEC
Width 60mm
