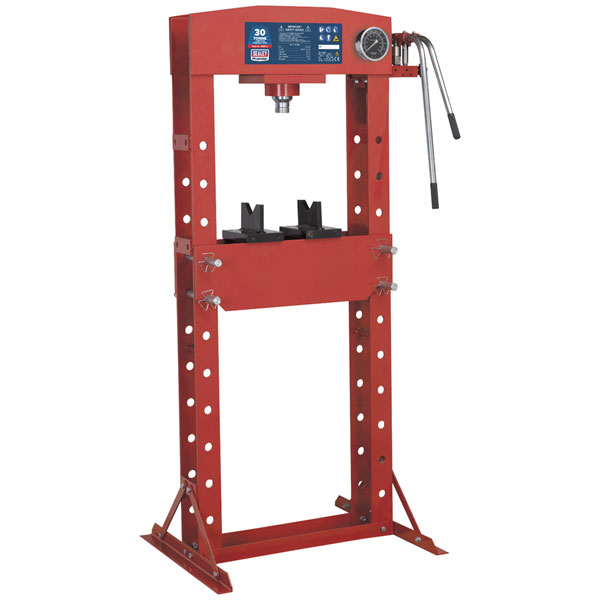

Sealey YK30F Hydraulic Press 30tonne Floor Type

Steel frame construction with 2-speed hydraulic pump unit. Sliding hydraulic ram assembly gives 200mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Supplied with flat pressing plate/V-blocks.

• Steel frame construction with 2-speed hydraulic pump unit.
• Sliding hydraulic ram assembly gives 200mm of lateral travel for off-centre pressing applications.
• Frame head fitted with ram pressure gauge.
• Supplied with flat pressing plate/V-blocks.
• Table Aperture: 164mm.
• Working Table Width: 535mm.
• Ram Stroke: 150mm.
• 5 Year guarantee*.
• *This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Model No. YK30F

Type	Floor
Capacity	30t
Bench or Floor Mounting	Floor
Gauge Included	Yes
Lateral Ram Travel	190mm
Maximum Height - Ram to Table	1035mm
Minimum Height - Ram to Table	55mm
Nett Weight	130kg
Operating Table Width	490mm
Optional Accessories	YKSG20 - Safety Guard, YKPP8 - Press Pin Set
Overall Height	1775mm
Ram Diameter	Ø70mm
Ram Stroke	150mm
Screw Extension	N/A
Table Aperture	152mm
Working Table Depth	172mm
Working Table Width	650mm
