Sealey TA202 Digital Automotive Analyser 14 Function with Ic

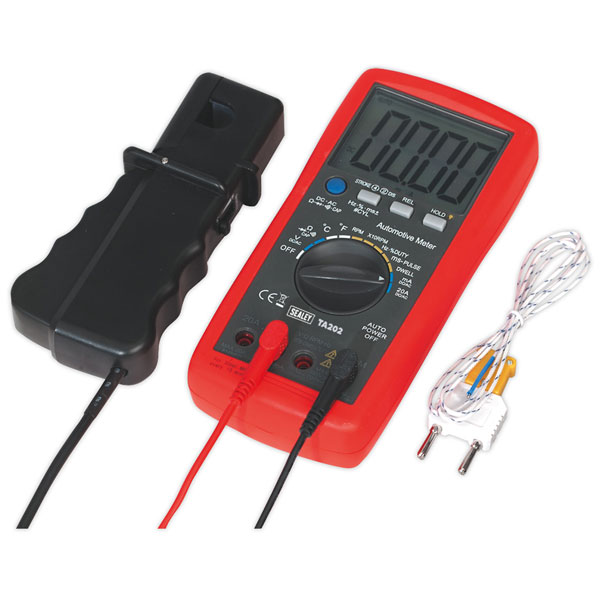

Extra-large, high-contrast LCD display with 36mm high digital read-out and back light. Durable case and integral stand suitable for the toughest workshop conditions. Features millisecond pulse-width function for accurate measurement of fuel injection systems. Includes auto-ranging, data-hold and auto-power-off. Supplied with inductive coupler (IC), test probes, thermocouple and storage case.

• Integrated circuit, high visibility, back lit, LCD display and 5-position stand.
• 14-Functions including pulse-width measurement for fuel injectors, idle air control motors and electronic transmission control systems.
• Auto-ranging and auto-power-off.
• Suitable for AC and DC circuits.
• Supplied with test leads, inductive coupler with adjustable sensitivity, K-type temperature probe and operating instructions.
• Model No. TA202

Model No	TA202
Nett Weight:	394g
Tach (rpm):	4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm
Dwell:	4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
AC Voltage:	400mV, 4V, 40V, 400V, 700V (Auto-Ranging, except 400mV)
DC Voltage:	400mV, 4V, 40V, 400V, 1000V (Auto-Ranging)
AC Current:	400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
DC Current:	400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
Capacitance:	40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
Frequency:	5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 10MHz (Auto-Ranging)
Duty Cycle:	0.1-99.9%
Pulse Width:	1-10ms
Resistance:	400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
Continuity:	<150Ω
Temperature:	-20 to +760°C/-4 to +1400°F
IR Temperature:	No
Diode Check:	Yes (Typical Test Current 0.3mA)
Transistor Test:	No
Back Light:	Yes
Bar Graph Display:	No
Display Hold:	Yes
Auto-Ranging:	Yes
Inductive Coupler:	Yes
PC Interface:	No
Digits Height:	36mm
Auto Power Off:	Yes
Low Battery Indicator:	Yes
Batteries (supplied):	9V (PP3)
Hi-Impact Case:	Yes
Size (L x W x D):	195 x 92 x 36mm
Weight:	394g

Type	Digital automotive analyser
AC Current	400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
AC Voltage	400mV, 4V, 40V, 400V, 700V (Auto-Ranging, except 400mV)
Auto power off	Yes
Auto-Ranging	Yes
Back Light	Yes
Bar Graph Display	No
Batteries (supplied)	9V (PP3)
Capacitance	40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
Continuity	<150O
DC Current	400µA, 4000µA, 40mA, 400mA, 4A, 20A (Auto-Ranging for µA & mA)
DC Voltage	400mV, 4V, 40V, 400V, 1000V (Auto-Ranging)
Digits Height	36mm
Diode Check	Yes (Typical Test Current 0.3mA)
Display Hold	Yes
Duty Cycle	0.1-99.9%
Dwell	4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
Frequency	5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 10MHz (Auto-Ranging)
Hi-Impact Case	Yes
Inductive Coupler	Yes
IR Temperature	No
Low Battery Indicator	Yes
Nett Weight	394g
PC Interface	No
Pulse Width	1-10ms
Resistance	400O, 4kO, 40kO, 400kO, 4MO, 40MO (Auto-Ranging)
Size (L x W x D)	195 x 92 x 36mm
Tach (rpm)	4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm
Temperature	-20 to +760°C/-4 to +1400°F
Transistor Test	No
Weight	394g
