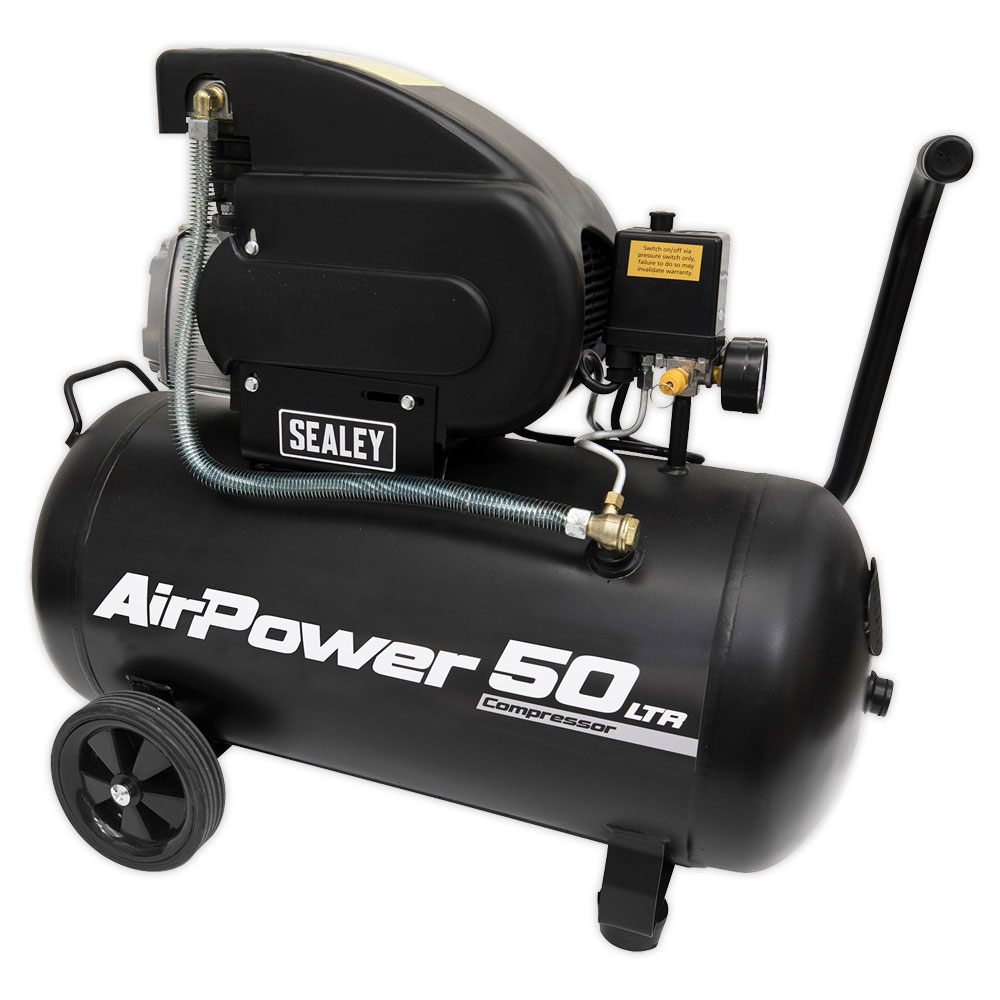

Sealey SAC5020A Compressor 50L Direct Drive 2hp

Aluminium cylinder head with cast iron cylinder gives added resistance to wear. Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation. Precision welded receiver tank manufactured to meet Pressure Vessel Directive. Suitable for general-purpose workshop applications. Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures. Fitted with 3-pin plug.

• Air Displacement: 6.8cfm(192L/min).
• Maximum Free Air Delivery: 4.6cfm(130L/min).
• Maximum Pressure: 116psi(8bar).
• Aluminium cylinder head with cast iron cylinder gives added resistance to wear.
• Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation.
• Precision welded receiver tank manufactured to meet Pressure Vessel Directive.
• Suitable for general-purpose workshop applications.
• Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
• Fitted with 3-pin plug.
• Model No. SAC5020A

Maximum Pressure	116psi(8bar)
Air Displacement cfm(L/min)	6.8(192)
Lifetime Warranty	No
Maximum Free Air Delivery cfm(L/min)	4.6(130)
Minimum Rated Supply	9A
Motor Output	2hp
Nett Weight	29kg
Noise Level	96dB(A)
Oil Capacity	240ml
Outlet	Quick Release Coupling
Phase	1ph
Receiver Capacity	50L
Size (W x D x H)	705 x 300 x 600mm
Supply	230V/13A
