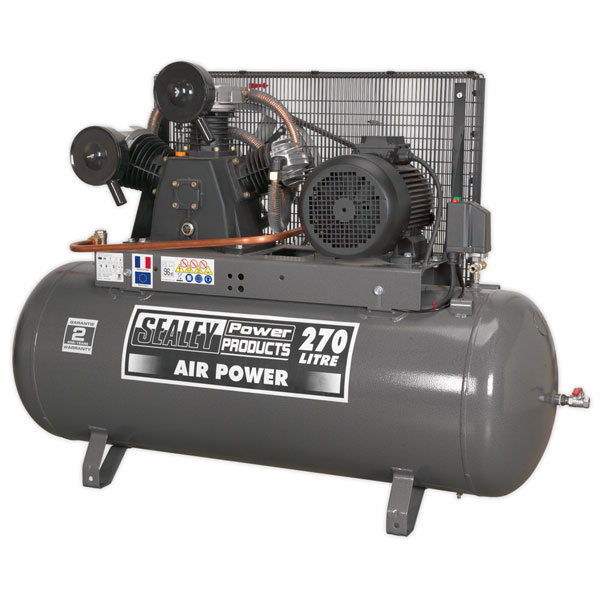

Sealey SAC32775B Compressor 270ltr Belt Drive 7.5hp

Heavy-duty 3-phase compressor suitable for the professional workshop. Triple cylinder pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models. Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual. Includes a drain valve for easy release of condensed water build-up in the tank.

• Air Displacement: 29.7cfm(840L/min).
• Maximum Free Air Delivery: 26.2cfm(742L/min).
• Maximum Pressure: 145psi(10bar).
• Heavy-duty 3-phase compressor suitable for the professional workshop.
• Triple cylinder pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase models.
• Pump features heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
• Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
• Supplied with full CE certification, test certificates and operating/maintenance manual.
• Includes a drain valve for easy release of condensed water build-up in the tank.
• 3 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Model No. SAC32775B

Type	Belt Driven Air Compressor
Capacity	270L
Maximum Pressure	145psi(10bar)
Air Displacement cfm(L/min)	29.7(840)
Horsepower	7.5hp
Lifetime Warranty	No
Maximum Free Air Delivery cfm(L/min)	26.2(742)
Minimum Rated Supply	32A
Motor Output	7.5hp
Nett Weight	193kg
Noise Level	92
Oil Capacity	1.7L
Outlet	1/2"BSP
Phase	3ph
Receiver Capacity	270L
Size (W x D x H)	1500 x 620 x 1080mm
Speed	970rpm
Supply	400V/32A
