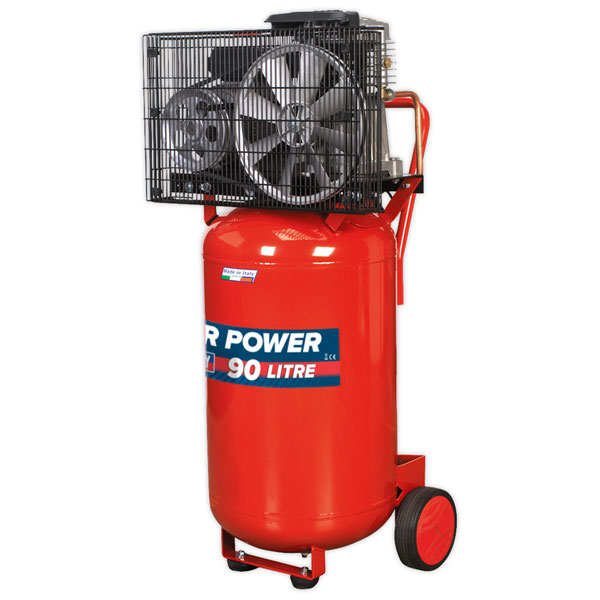

Sealey SAC1903B Compressor 90ltr Vertical Belt Drive 3hp

MPN: SAC1903B
Brand: Sealey
EAN-13: 5051747570405
Order Code: 89-7739
Country of Origin: Italy

RoHS Compliant
Not available for Export

Discontinued

Product Details
Data Sheets

Suitable for the professional workshop fitted with a genuine 3hp motor. Vertical tank saves space without compromising on performance. Twin capacitors and a centrifugal switch aid trouble free start up on a 13Amp supply. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long life. Heavy-duty drive guard protects belt and flywheel that is designed to force air over the pump to aid cooling.

Model No	SAC1903B
Air Displacement cfm(L/min):	13.4(380)
Maximum Free Air Delivery cfm(L/min):	9.7(275)
Maximum Pressure:	145psi(10bar)
Minimum Rated Supply:	13A
Motor Output:	3hp
Nett Weight:	65kg
Outlet:	Quick Release Coupling
Phase:	1ph
Receiver Capacity:	90L
Size (W x D x H):	525 x 495 x 1130mm
Speed:	1636rpm
Supply:	230V
