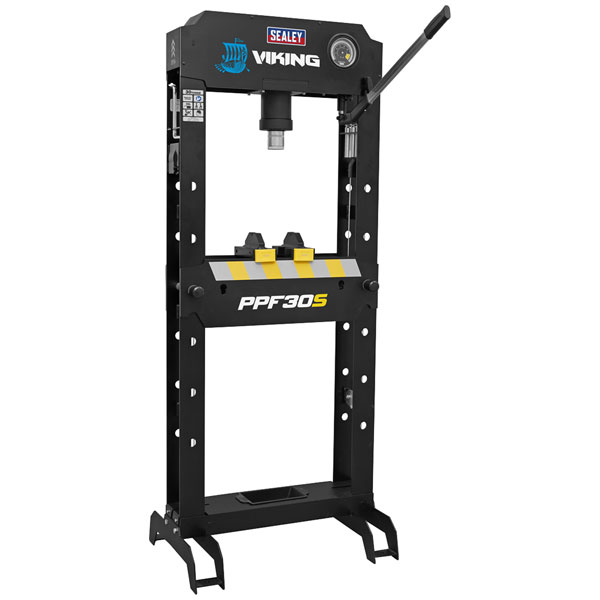

Sealey PPF30S Viking Floor Type Hydraulic Press 30 Tonne

Heavy-duty steel frame construction with handle operated hydraulic pump unit. Screw adjustable ram and adjustable work area with removable tray. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame. Supplied with press pins, flat pressing plate/V-blocks.

• Table Aperture: 150mm.
• Working Table Width: 710mm.
• Ram Stroke: 220mm.
• Heavy-duty steel frame construction with handle operated hydraulic pump unit.
• Screw adjustable ram and adjustable work area with removable tray.
• Frame head fitted with ram pressure gauge.
• Winch assisted press table adjustment.
• Storage for press pins included in frame.
• Supplied with press pins, flat pressing plate/V-blocks.
• 5 Year guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Model No. PPF30S

Type	Floor
Capacity	30tonne
Bench or Floor Mounting	Floor
Gauge Included	Yes
Lateral Ram Travel	n/a
Maximum Height - Ram to Table	850mm
Minimum Height - Ram to Table	25mm
Nett Weight	125.9kg
Operating Table Width	540mm
Overall Height	1800mm
Ram Diameter	Ø103.2mm
Ram Stroke	220mm
Screw Extension	75mm
Table Aperture	150mm
Working Table Depth	166mm
Working Table Width	710mm
