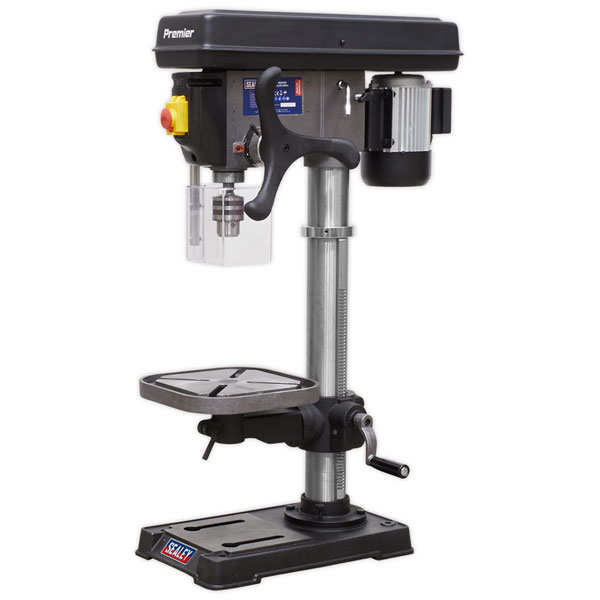

Sealey PDM155B Pillar Drill Bench 16-Speed 1050mm Height 230V

Order Code:

89-2037

Brand: Sealey MPN: PDM155B EAN-13: 5054511285369
Qty Was Unit Price (Ex VAT)
1+ £435.73 £425.82
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
20 in stock, despatched in 2 working days

One of a comprehensive range of Premier bench mounting pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process. Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.


  • 16mm(5/8") Capacity chuck, MT2.
  • Fitted with no-load voltage switch and locking cover to prevent accidental starting.
  • Supplied with an electrically inter-locked chuck guard.
  • Integral work light.
  • Height: 1050mm.
  • Spindle Centre to Column: 190mm.
  • High torque heavy-duty aluminium-bodied induction motors.
  • Motor Power: 370W.
  • Column Diameter: Ø80mm.
  • Spindle Travel: 80mm.
  • Weight: 55kg.
  • Model No. PDM155B
Voltage 230V
Type Magnetic Drill
Power 550W
Chuck Size 16mm
Speed Settings 16
Base Size 495 x 290mm
Collar Diameter Ø60mm
Column Diameter Ø80mm
Drilling Capacity (Chuck Size) 16mm
Integral Work Light Yes
Lifetime Warranty No
Maximum Distance Spindle to Base 660mm
Maximum Distance Spindle to Table 475mm
Motor Power (Start) 370W(600W)
Nett Weight 55kg
Number of speeds 16
Optional Accessories PDM/KC - Keyless Pillar Drill Chuck 16mm
Overall Height 1050mm
Speed Range 190-3000rpm
Spindle Centre to Column 190mm
Spindle Nose Taper MT2
Spindle Travel 80mm
Supply 230V
Swing 380mm
Working Base Surface Size 205 x 200mm
Working Table Surface Size 290 x 290mm
