3-in-1 IGBT Inverter that allows the user to MMA weld, charge batteries and jump start vehicles with flat batteries. Three functions include a 160A MMA welder, 30A battery charger and a 200A start function. Unit can MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø4mm. Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions. Ultra-compact and lightweight unit weighing just 5kg approx. Suitable for charging VRLA (Lead Acid), GEL, AGM/EFB and Leisure Batteries on 12 and 24V systems. Supplied with 1.6m 16mm² cable with electrode holder and a 1.4m 16mm² earth clamp and cable, 1m 200A charging clamps and 1.8m power cable.
- 3-in-1 IGBT Inverter that allows the user to MMA weld, charge batteries and jump start vehicles with flat batteries.
- Three functions include a 160A MMA welder, 30A battery charger and a 200A start function.
- Unit can MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø4mm.
- Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.
- Ultra-compact and lightweight unit weighing just 5kg approx.
- Suitable for charging VRLA (Lead Acid), GEL, AGM/EFB and Leisure Batteries on 12 and 24V systems.

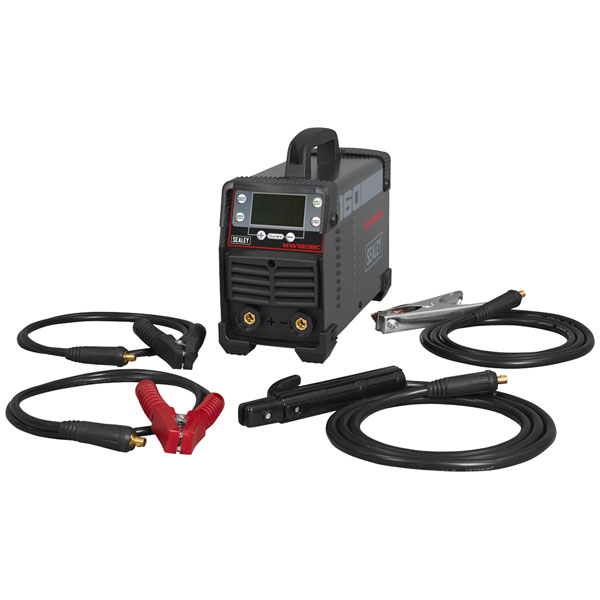

- Supplied with 1.6m 16mm² cable with electrode holder and a 1.4m 16mm² earth clamp and cable, 1m 200A charging clamps and 1.8m power cable.
- Model No. MW160BC
| Type |
Inverter Welder/Battery Starter |
| Voltage |
230V |
| Output Current |
20-160A |
| Battery type |
VRLA (Sealed Lead Acid), GEL, AGM/EFB, Leisure (Deep Discharge) |
| Cable & Clamp Length |
1m |
| Charge Peak |
30A |
| Duty Cycle |
25% @ 160A, 60% @ 124A, 100% @ 80A |
| IP Rating |
IP21 |
| Max. Size Battery (Ah) Full Charge In 12hrs |
400Ah |
| MMA Output |
20-160A |
| Nett Weight |
4kg |
| Plug Type |
Bare Wire |
| Start Peak |
200A |
| Supply |
230V |
| System |
12/24V |
