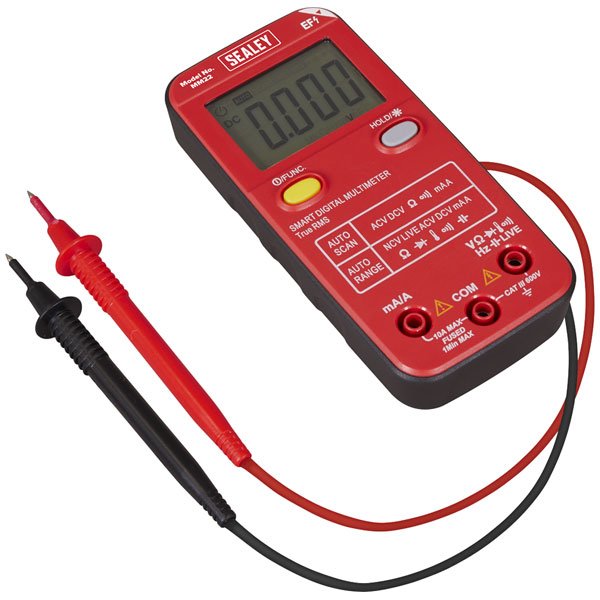

High-precision smart auto-scanning multimeter. Intelligent multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity. Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. Features temperature measurement capability, data-hold and auto-power-off function. Non-contact voltage detection (NCVD) enables one-handed use. The live test feature can test for live feeds with a single probe. Supplied with probes including a thermocouple probe and integral upright stand for use on the workbench. Clear and easy-to-read LCD display.
- High-precision smart auto-scanning multimeter.
- The intelligent multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity.
- Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.
- Features temperature measurement capability, data-hold and auto-power-off function.
- Non-contact voltage detection (NCVD) enables one-handed use.
- Live test feature can test for live feeds with a single probe.
- Supplied with probes including a thermocouple probe and integral upright stand for use on the workbench.
- Clear and easy-to-read LCD display.
- Model No. MM22
| Type |
Electrics |
| AC Current (Accuracy) |
4000mA/10.00A
|
| AC Voltage (Accuracy) |
400mV/4V/40V/400V/600V
|
| Auto Range |
ACV/DCV/Resistance/Continuity/Diode/Temperture/Capacitance/NCV/LIVE/mA/A
|
| Auto Scan |
V/R/CONT/A
|
| Backlit/Tourch |
Yes |
| Battery (Supplied) |
2 x 1.5V (AAA) |
| Capacitance (Accuracy) |
4.000nF~4mF
|
| Conformity |
EN 61010-1 |
| Continuity |
Yes |
| DC Current (Accuracy) |
4000mA/10.00A
|
| DC Voltage (Accuracy) |
400mV/4V/40V/400V/600V
|
| Digits x Height |
4 x 16mm |
| Diode Test |
Yes |
| Duty Cycle |
No |
| Frequency (Accuracy) |
Yes |
| Hi-Impact Rubber Case |
No |
| Information |
Data-Hold, Auto-Power-Off, Integral Stand & Live Test. |
| Low Battery Indicator |
Yes |
| Nett Weight |
0.20kg |
| Resistance (Accuracy) |
400O/4kO/40kO/400kO/4MO/40MO
|
| Size (L x W x D) |
130 x 62 x 26mm |
| Temperature (Accuracy) |
-200°C to 1200°C
-328°F to 2192°F
|
| Transistor Test |
No |
| Weight |
0.138kg |
