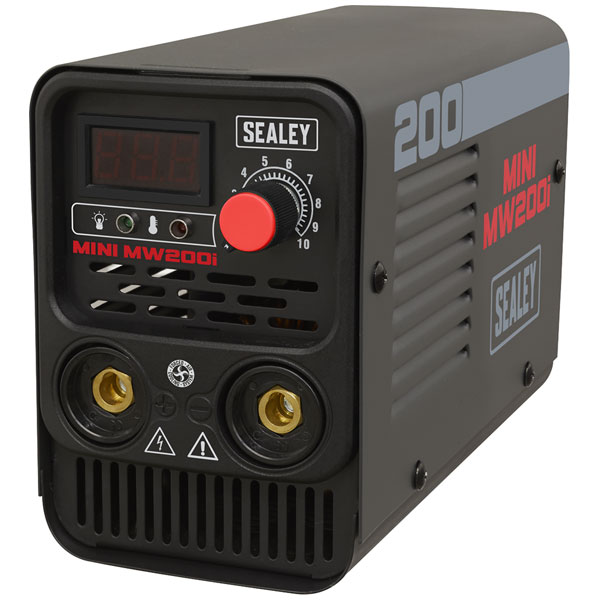

Sealey MINIMW200i Inverter Welder 200A/230V

Ultra-compact and lightweight unit weighing approximately 4kg. Portability allows the welder to be taken to the job at hand, ideal for mobile technicians. Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø5mm. Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions. Supplied with 1.6m 25mm² cable with electrode holder and a 1.4m 25mm² earth clamp and cable, both with 10-25 dinse connectors. Forced air cooling system.

• Ultra-compact and lightweight unit weighing approximately 4kg.
• Portability allows the welder to be taken to the job at hand, ideal for mobile technicians.
• Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø5mm.
• Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.
• Supplied with 1.6m 25mm² cable with electrode holder and a 1.4m 25mm² earth clamp and cable, both with 10-25 dinse connectors.
• Forced air cooling system.
• Model No. MINIMW200i

Type	Inverters
Voltage	230V
Output Current	20-200A
*Note	To achieve maximum power a 16A supply may be required.
Absorbed Power	9kW
Duty Cycle	100% @ 155A, 60% @ 200A
Electrode Capacity	1.6-5mm
IP Rating	IP21S
Nett Weight	4.8kg
Plug Type	Bare Wire
Power Supply Cable Length	2m
Supply	230V - 16A*
Weight	4.8kg
Welding Current	20-200A
