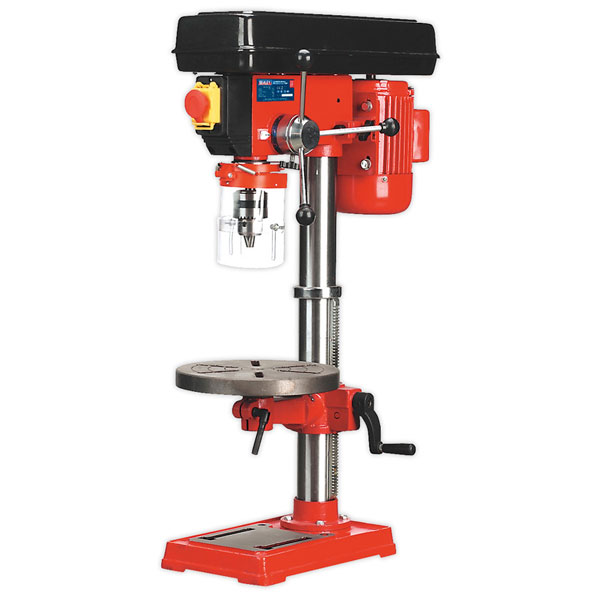

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments. Access to drive belts is denied during operation by mechanical protection. Mortise attachment available, order Model No. MA10.
- 16mm(5/8"") Capacity chuck, MT2.
- Fitted with no-load voltage switch and locking cover to prevent accidental starting.
- Height: 840mm.
- Spindle Centre to Column: 127mm.
- Motor Power: 220W, Input Power: 370W.
- Column Diameter: 60mm.
- Spindle Travel: 60mm.
- Weight: 32kg.
- Model No. GDM92B
| Voltage |
230V |
| Type |
Magnetic Drill |
| Power |
370W |
| Chuck Size |
16mm |
| Speed Settings |
12 |
| Base Size |
345 x 215mm |
| Collar Diameter |
Ø60mm |
| Column Diameter |
Ø60mm |
| Drilling Capacity (Chuck Size) |
16mm |
| Lifetime Warranty |
No |
| Maximum Distance Spindle to Base |
540mm |
| Maximum Distance Spindle to Table |
390mm |
| Motor Power (Start) |
220W(370W) |
| Nett Weight |
32kg |
| Number of Speeds |
12 |
| Optional Accessories |
GDMX/KC - Keyless Chuck 16mm: |
| Overall Height |
840mm |
| Speed Range |
210-2580rpm |
| Spindle Centre to Column |
127mm |
| Spindle Nose Taper |
MT2 |
| Spindle Travel |
60mm |
| Supply |
230 |
| Swing |
254mm |
| Working Base Surface Size |
160 x 180mm |
| Working Table Surface Size |
Ø248mm |
