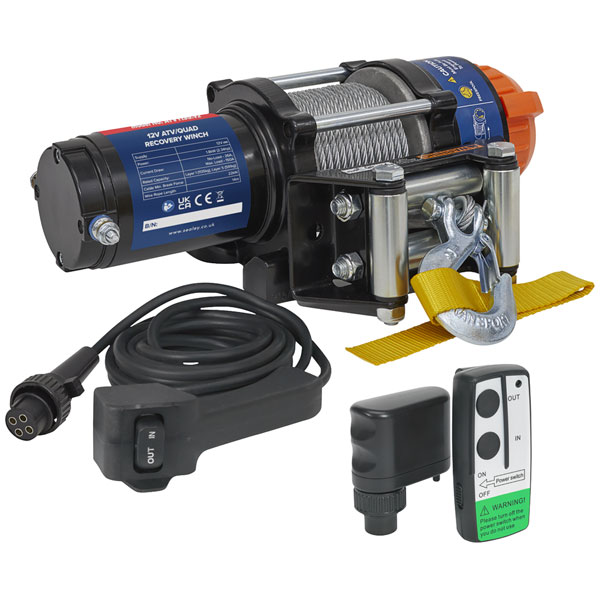

Sealey ATV1135KIT Wireless Winch ATV1135 Combo Kit

Suitable for ATV and quad bike mounting, this high-speed winch offers a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 12V DC motor with permanent magnet gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.

Package Includes:
• Model No. - Description
• ATV1135 - 12V ATV/Quad Recovery Winch 1135kg(2500lb) Line Pull
• UWRC01 - 4-Pin Universal Winch Remote Control
• 3 Year guarantee*.
• Model No. ATV1135KIT

Type	Winch
Cable Minimum Brake Force	22kN
Consumable Parts	ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
Current Draw	No-Load - 26A, Maximum Load - 150A
Gear Ratio	7.12:01:00
Line Pull*	1135kg(2500lb)
Line Speed*	No-Load - 4.8m/min, Maximum Load - 1.6m/min
Motor Power	1.8kW(2.34hp)
Nett Weight	11.9kg
Note	*Performance quoted at first layer of cable on drum
Rated Capacity	Layer 1: 1135kg, Layer 5: 591kg
Supply	12V
Voltage	12V
