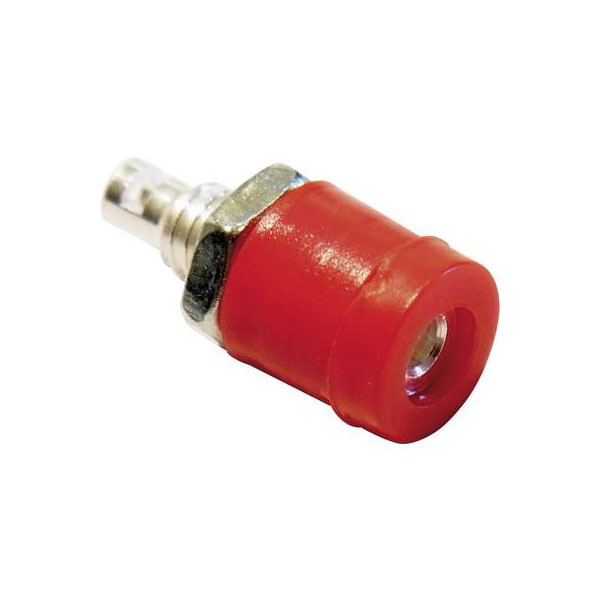

Schnepp BU 2400 Mini Jack Socket Vertical 2mm Red Includes Fastening Nut

Schnepp
Standard range
Order Code:

12-9024

Brand: Schnepp MPN: BU 2400-RD EAN-13: 2050000238086
Qty Unit Price (Ex VAT)
1+ £0.524
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
294 in stock, despatched in 4 working days

The Schnepp BU 2400 mini jack socket features a vertical pin diameter of 2 mm and is available in red. It is an insulated socket suitable for use in laboratory connectors and safety jack applications. Ideal for those needing a reliable connection within electronic component systems and boards.
Type Mini jack socket
Connection Soldering
Connector type Socket, vertical vertical
Contact material Brass silver plated
Cross section (flexible) (max.) 1mm²
Dim Länge mit Lötansatz 15 mm
Dimensions Länge mit Lötansatz 15 mm
Factory colour Red
Insulation material PA
Insulation type Partially insulated
Jack diameter 2mm
Material (details) Brass, silver-plated
Misc Attribute 1 Insulated socket
Misc Attribute 2 BU 2400
Nominal current 5A
Nominal current - rounded value 5A
Nominal current (details) 5A
Pin Ø 2mm
RoHS-compliant Yes
