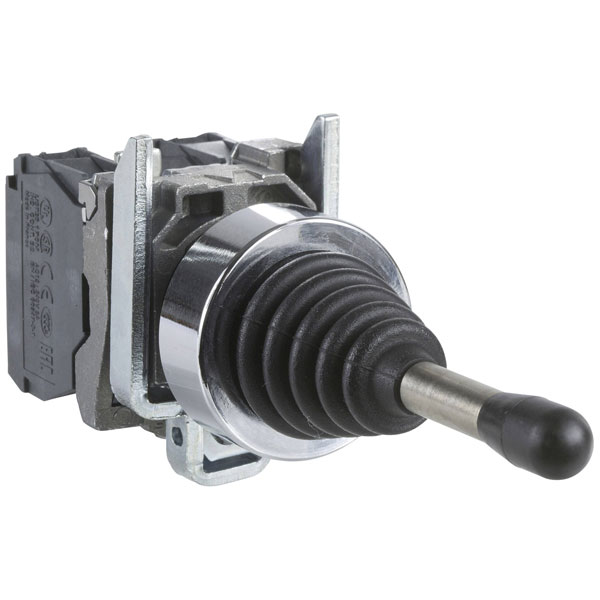

Schneider Electric XD5PA22 joystick 2 direction control 1pc

The Schneider Electric XD5PA22 joystick is a robust control device with precise handling capabilities. It is typically used in industrial settings for equipment manoeuvring or machine operation. Known for its durability, it ensures reliable performance even in demanding environments.

Type	Joystick
Voltage Rating	600V
Current Rating (Amps)	10A
Analogue output signal configurable	false
Centre mounting, hole diameter	22mm
Coder	false
Colour front ring	Black
Degree of protection (IP)	IP66
Degree of protection (NEMA)	Other
Dim	(L x W x H) 108 x 30 x 47 mm
Durability	1000000 cycles
Electrical lifespan	1000000 cycles at 230 V AC 1000000 cycles at 120 V DC
Height	47mm
Joy stick length	54mm
Length	108mm
Lighting Type	None
Locking in 0-position	false
Material front ring	Plastic
Min. temperature	-40°C
Number of actuation directions	2
Number of make-and-break contacts per direction	0
Number of normally closed contacts per actuation direction	0
Number of normally open contacts per actuation direction	1
Number of Switch Positions	2
Rated operation current Ie at AC-21, 400 V	10A
Switch Function	Spring-return
Width	30mm
With front ring	true
With retraction in 0-position	true
