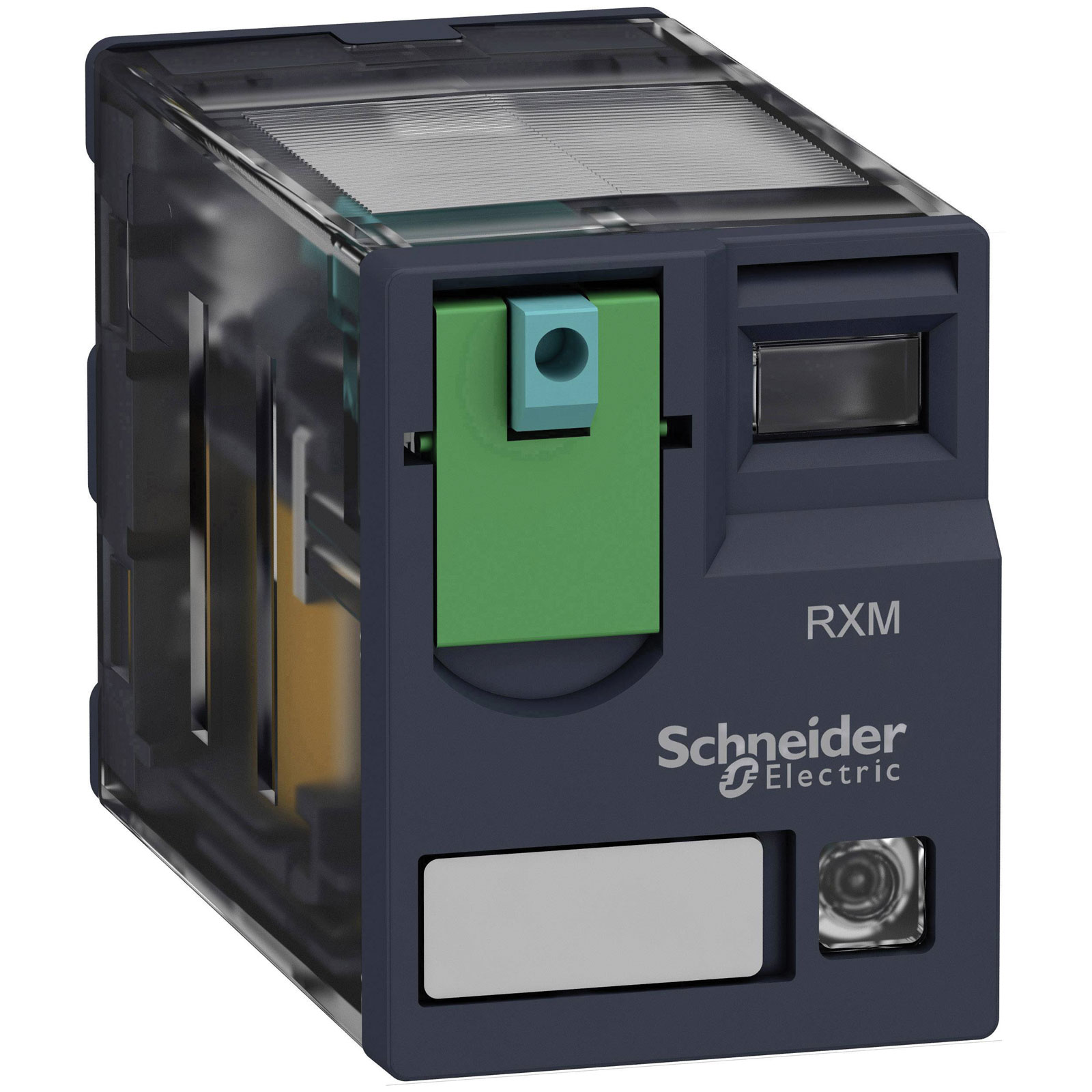

Schneider Electric RXM4AB1B7 Relay 24V AC 6A 4 breakers plug-in type

The Schneider Electric RXM4AB1B7 Plug-in Relay is a reliable component featuring 24 V AC operation and four breakers, suitable for handling up to 6 A. This relay is perfect for use in printed circuit board applications, offering robust performance in automation and control systems. It's ideal for industries needing dependable switching, such as industrial or commercial electrical installations.

Coil Voltage	24V AC
Switching Current	6A
Coil Resistance	180O
Colour	Anthracite (matt)
Complete with socket	false
Connection	Pin terminal (flat)
Contact Material	AgNi
Control Mode	monostable, 1 coil
Degree of protection (IP)	IP40
Depth	40mm
Dimensions	(W x H x D) 21 x 27 x 40 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
Durability	100000 cycles
Fall Time	20ms
Height	27mm
IP Rating	IP40
Material contact	Other
Material of contact insert	Other
Material of contact surface	Other
Max. pick-up Voltage	26.4V AC
Max. starting current	N/A
Max. switching capacity	1500VA
Max. temperature	+55°C
Min. pick-up Voltage	19.2V AC
Minimum Temperature	-40°C
Mounting Type	Plug-in
Nominal Current	6A
Number of contacts as change-over contact	4
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Operating voltage AC 50 Hz	N/A
Operating voltage AC 60 Hz	N/A
Operating voltage DC	N/A
Rated control supply voltage AC 50 Hz	24 - 24V
Rated control supply voltage AC 60 Hz	24 - 24V
Rated control supply voltage DC	N/A
Relay technology category according to IEC 61810-7	N/A
Response Time	20ms
Switching Voltage Max	250V AC
Type	Plug-in relay
Type of electric connection	Plug-in connection
Type of switch contact	Other
Voltage type (operating voltage)	N/A
Voltage type for actuating	AC
Width	21mm
With detachable clamps	false
With forced-guided contacts	false
With LED indication	false
