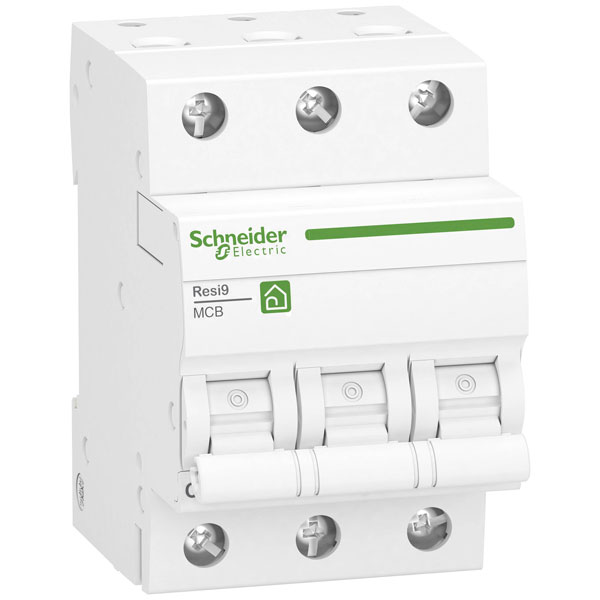

Schneider Electric R9F24316 Circuit Breaker 16A 400V 1pc

Schneider Electric
Order Code:

06-6241

Brand: Schneider Electric MPN: R9F24316 EAN-13: 3606481301246
Qty Unit Price (Ex VAT)
1+ £75.77
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

Schneider Electric's R9F24316 circuit breaker is designed for 16 A current and 400 V voltage applications. This reliable circuit protection device prevents electrical overloads and short circuits. Commonly used in residential and commercial electrical systems, it ensures operational safety and network reliability.
Type Circuit breaker
Additional equipment possible false
Ambient temperature during operating -25 - 60°C
Built-in depth 44mm
Concurrently switching neutral conductor false
Connectable conductor cross section multi-wired 1 - 16mm²
Connectable conductor cross section solid-core 1 - 25mm²
Current limiting class 3
Current Ratng 16A
Degree of protection (IP) IP20
Depth 75mm
Dim (W x H x D) 54 x 85 x 75 mm
Explosion-proof false
Flush-mounted installation false
Frequency 50 - 60Hz
Height 85mm
Number of Pins 3
Number of poles (total) 3
Number of protected poles 3
Overvoltage category 3
Pollution degree 2
Power loss 2.6W
Rated current 16A
Rated impulse withstand voltage Uimp 4kV
Rated insulation voltage Ui 440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V N/A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V N/A
Rated voltage 400V
Release characteristic C
Release characteristics C/6kA
Voltage Rating 400V
Voltage type AC
Width 54mm
Width in number of modular spacings 3
