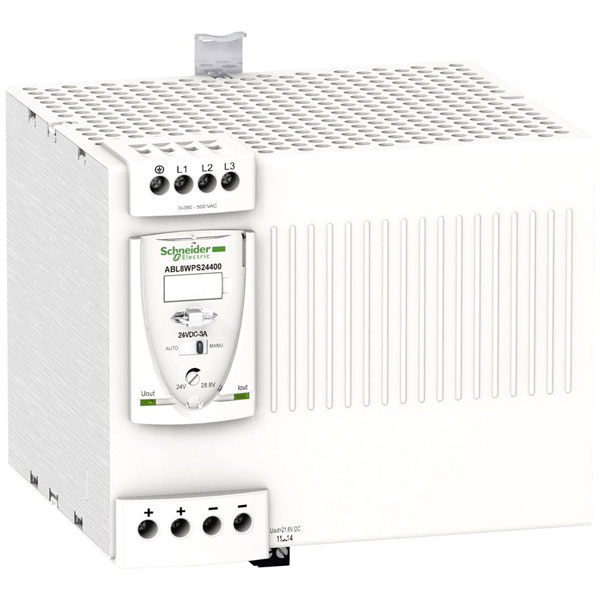

Schneider Electric offers the ABL8WPS24400, a rail-mounted power supply unit designed for industrial applications. This PSU delivers a robust output of 40 A, ensuring reliable power distribution. It is ideal for integration into DIN rail systems in various industrial and automation environments.
| Type |
Rail mounted PSU (DIN) |
| Output Voltage |
24V DC |
| Output Current |
40A |
| 1st secondary output voltage |
24 - 28.8V |
| 2nd secondary output voltage |
N/A |
| 3rd secondary output voltage |
N/A |
| Built-in height |
N/A |
| Built-in width |
N/A |
| Connection |
Punchdown block |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Depth |
160mm |
| Direct mounting possible |
false |
| Height |
143mm |
| Input voltage (max.) |
500V |
| Max. output current |
40A |
| Max. output current 1 |
40A |
| Max. output current 2 |
N/A |
| Max. output current 3 |
N/A |
| Min. input voltage |
380V |
| Nominal value output current 1 |
40A |
| Nominal value output current 2 |
N/A |
| Nominal value output current 3 |
N/A |
| Nominal value output voltage 1 |
24V |
| Nominal value output voltage 2 |
N/A |
| Nominal value output voltage 3 |
N/A |
| Operating temperature (max.) |
60°C |
| Operating temperature (min.) |
-25°C |
| Output voltage stabilized |
true |
| Performance level according to EN ISO 13849-1 |
None |
| Power Consumption |
N/A |
| Power Output |
960W |
| Rated supply voltage AC 50 Hz |
380 - 500V |
| Rated supply voltage AC 60 Hz |
380 - 500V |
| Rated supply voltage DC |
N/A |
| Secondary voltage adjustable |
true |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
None |
| Stabilized |
true |
| Suitable for distribution board |
false |
| Suitable for rail mounting |
true |
| Suitable for safety functions |
true |
| Type of electric connection |
Screw connection |
| Voltage type (supply voltage) |
AC/DC |
| Wall mounting possible |
false |
| Width |
166mm |
| Width in number of modular spacings |
N/A |
