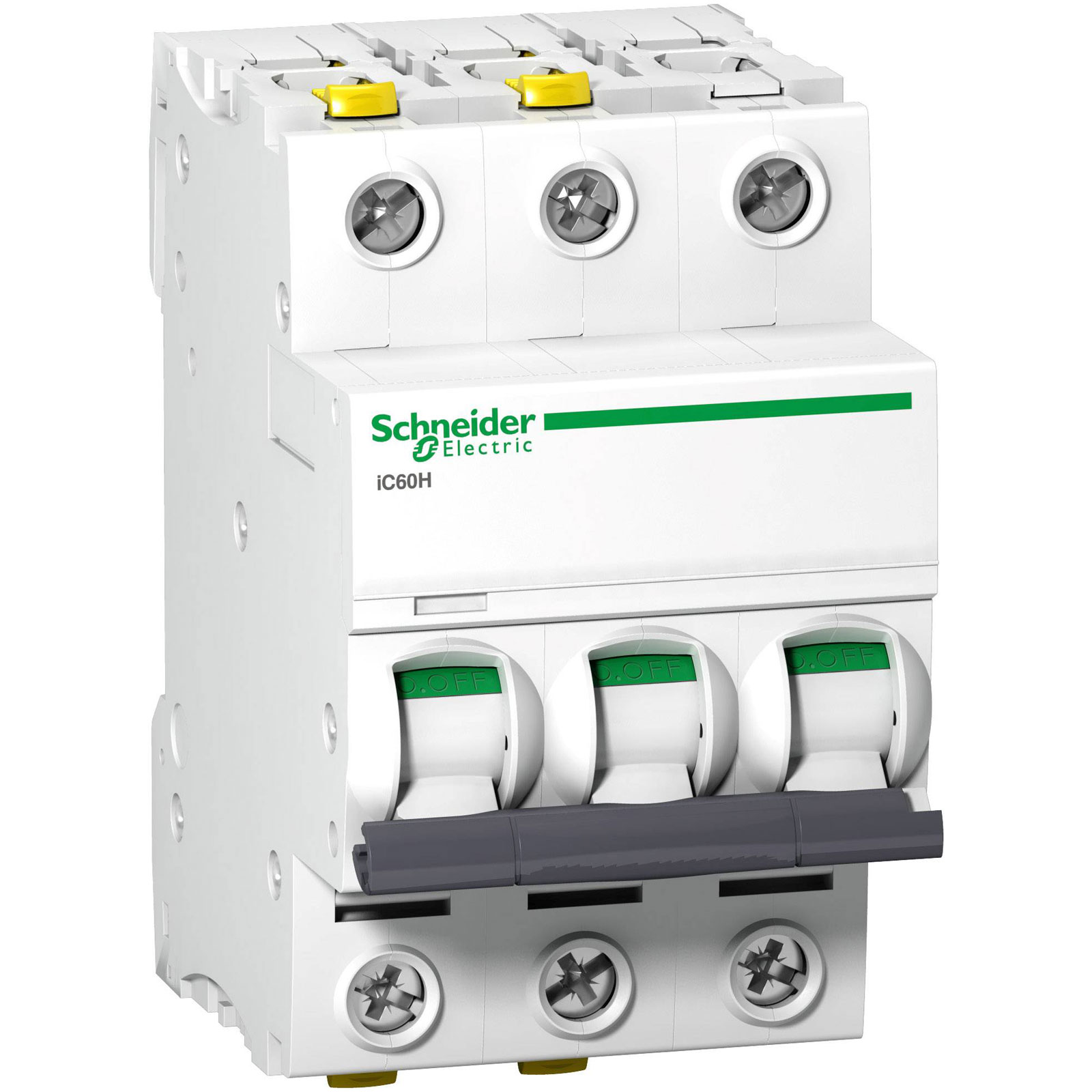

Schneider Electric A9F07332 iC60 Circuit Breaker 32A 400V H3P LS-Switch

Schneider Electric
Order Code:

06-5305

Brand: Schneider Electric MPN: A9F07332 EAN-13: 3606480438684
Qty Unit Price (Ex VAT)
1+ £41.07
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
14 in stock, despatched in 4 working days

The Schneider Electric A9F07332 circuit breaker provides over-current and short-circuit protection at a capacity of 32 A and 400 V. This miniature circuit breaker is ideal for installation protection and ensures reliable operation in residential and commercial settings. Typical applications include safeguarding electrical circuits from damage due to overload or short-circuit conditions.
Type Circuit breaker
Additional equipment possible true
Ambient temperature during operating -35 - 70°C
Built-in depth 44.5mm
Concurrently switching neutral conductor false
Connectable conductor cross section multi-wired 1 - 25mm²
Connectable conductor cross section solid-core 1 - 35mm²
Current limiting class 3
Current Ratng 32A
Degree of protection (IP) IP20
Dim (L x W x H) 78.5 x 54 x 91 mm
Explosion-proof false
Factory colour White
Flush-mounted installation false
Frequency 50 - 60Hz
Height 91mm
Length 78.5mm
Number of Pins 3
Number of poles (total) 3
Number of protected poles 3
Overvoltage category 4
Pollution degree 3
Power loss 2.8W
Rated current 32A
Rated impulse withstand voltage Uimp 6kV
Rated insulation voltage Ui 500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V N/A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V 30kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V 15kA
Rated voltage 400V
Release characteristic C
Voltage Rating 400V
Voltage type AC/DC
Width 54mm
Width in number of modular spacings 3
