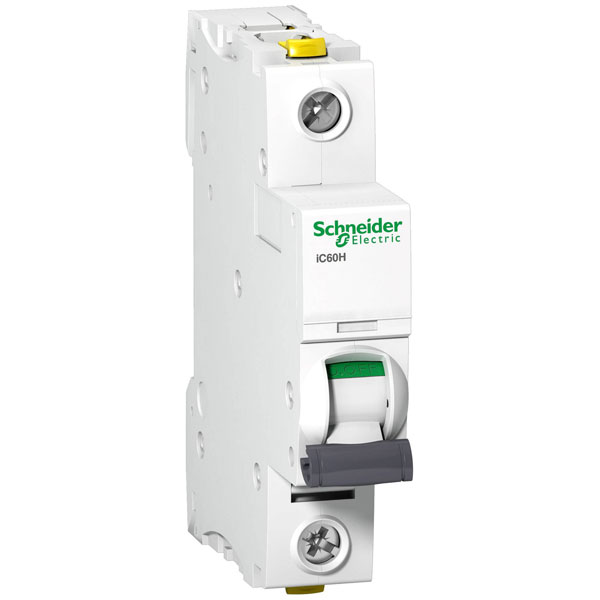

Schneider Electric A9F07110 iC60H Circuit Breaker 10A 230V 1-pole

The Schneider Electric A9F07110 is a miniature circuit breaker designed for over-current and short-circuit protection, rated at 10 A and 230 V. It is ideal for installation protection in residential and commercial electrical systems. This circuit breaker ensures reliable switching and safety, preventing potential electrical hazards.

Type	Circuit breaker
Current Rating	10a
Voltage Rating - AC	230V AC
No. of Poles	1
Tripping Characteristics	C
Additional equipment possible	true
Ambient temperature during operating	-35 - 70°C
Built-in depth	44.5mm
Concurrently switching neutral conductor	false
Connectable conductor cross section multi-wired	1 - 16mm²
Connectable conductor cross section solid-core	1 - 25mm²
Current limiting class	3
Current Ratng	10A
Degree of protection (IP)	IP20
Dim	(L x W x H) 78.5 x 18 x 91 mm
Explosion-proof	false
Factory colour	White
Flush-mounted installation	false
Frequency	50 - 60Hz
Height	91mm
Length	78.5mm
Number of Poles	1
Number of poles (total)	1
Number of protected poles	1
Overvoltage category	4
Pollution degree	3
Power loss	2.3W
Rated current	10A
Rated impulse withstand voltage Uimp	6kV
Rated insulation voltage Ui	500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	N/A
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	15kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	N/A
Rated voltage	230V
Voltage Rating	230V
Voltage type	AC/DC
Width	18mm
Width in number of modular spacings	1
