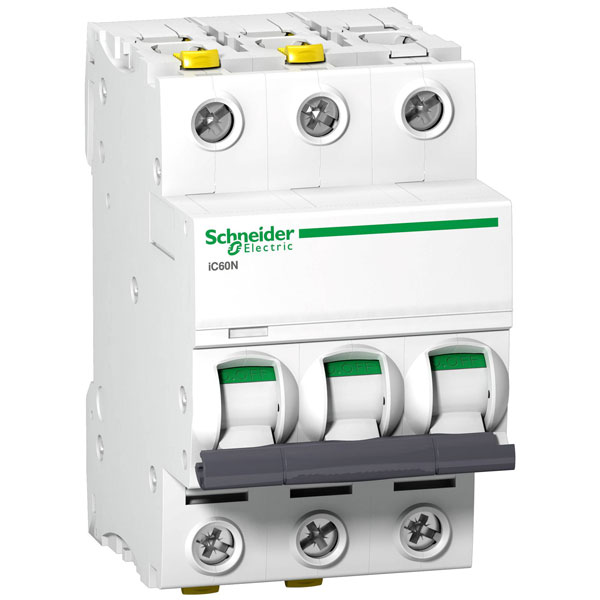

Schneider Electric A9F03313 iC60N Circuit Breaker 13A 400V 3P LS-switch

The Schneider Electric A9F03313 Circuit Breaker provides over-current and short-circuit protection with a 13 A capacity at 400 V. This miniature circuit breaker is usually used in electrical installations to ensure safety and reliability. Ideal for residential and commercial use, it effectively safeguards electrical systems against faults.

Type	Circuit breaker
Current Rating	13A
Voltage Rating - AC	400V AC
Tripping Characteristics	B Curve
Additional equipment possible	true
Ambient temperature during operating	-35 - 70°C
Built-in depth	44.5mm
Concurrently switching neutral conductor	false
Connectable conductor cross section multi-wired	1 - 16mm²
Connectable conductor cross section solid-core	1 - 25mm²
Current limiting class	3
Current Ratng	13A
Degree of protection (IP)	IP20
Dim	(L x W x H) 78.5 x 54 x 91 mm
Explosion-proof	false
Factory colour	White
Flush-mounted installation	false
Frequency	50 - 60Hz
Height	91mm
Length	78.5mm
Number of pins	3
Number of poles (total)	3
Number of protected poles	3
Overvoltage category	4
Pollution degree	3
Power loss	2.3W
Rated current	13A
Rated impulse withstand voltage Uimp	6kV
Rated insulation voltage Ui	500V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	N/A
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	20kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	10kA
Rated voltage	400V
Voltage Rating	400V
Voltage type	AC/DC
Width	54mm
Width in number of modular spacings	3
