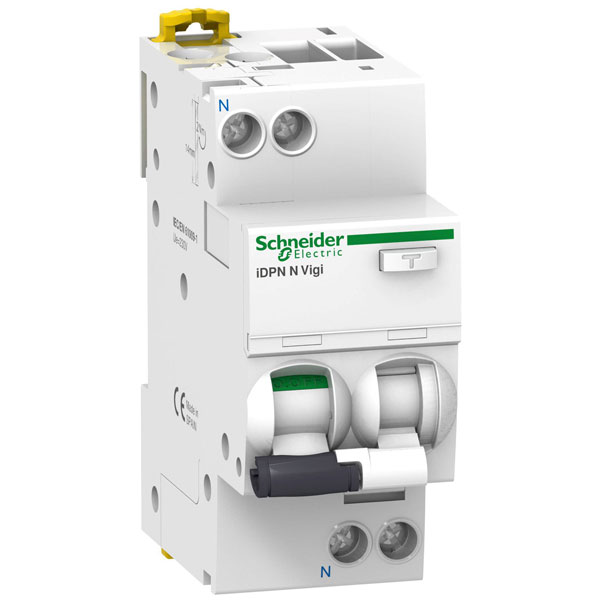

Schneider Electric A9D08616 RCBO 16A 10mA 240V 1P+N Type A FI/LS-Switch

Schneider Electric's A9D08616 RCBO is a Residual Current Circuit Breaker with Overcurrent protection rated at 16 A and 240 V. It features a 0.01 A residual current trip for enhanced safety. This device is typically used in residential and commercial electrical installations to prevent electrical faults and ensure circuit protection.

Type	RCBO
Current Rating	16A
Voltage Rating - AC	240V AC
Ambient temperature during operating	-25 - 60°C
Anti-nuisance tripping version	false
Built-in depth	44mm
Concurrently switching neutral conductor	true
Connectable conductor cross section multi-wired	1 - 10mm²
Connectable conductor cross section solid-core	1 - 16mm²
Current limiting class	3
Current Ratng	16A
Degree of protection (IP)	IP20
Depth	73mm
Differential current rating	0.01A
Dim	(W x H x D) 36 x 85 x 73 mm
Disconnection characteristic	Undelayed
Flush-mounted installation	false
Frequency	50 Hz
Height	85mm
Leakage current type	A
Number of Pins	2
Number of poles (total)	2
Number of protected poles	1
Overvoltage category	3
Pollution degree	3
Power loss	10W
Rated current	16A
Rated fault current	0.01A
Rated impulse withstand voltage Uimp	4kV
Rated insulation voltage Ui	400V
Rated short-circuit breaking capacity according to EN 61009	6kA
Rated short-circuit breaking capacity according to IEC 60947-2	N/A
Rated short-circuit breaking capacity Icn according to EN 61009-1	6kA
Rated voltage	230V
Release characteristic	B
Release characteristics	B
Surge current capacity	0.25kA
Switch-off Capacity	6kA
Voltage Rating	220-240 V/AC 50 Hz
Voltage type	AC
Width	36mm
Width in number of modular spacings	2
With interlocking device	true
