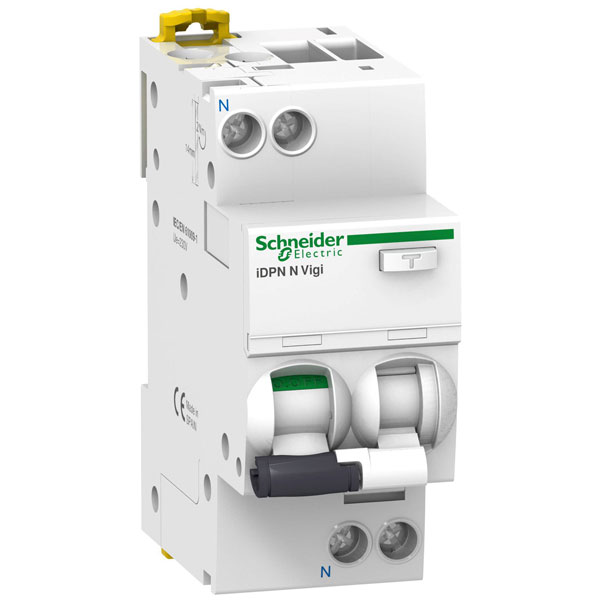

Schneider Electric A9D02610 iDPNN Vigi RCBO 10A 10mA 240V 1P+N Type A

Schneider Electric manufactures the A9D02610 RCBO, which is a residual current circuit breaker with over-current protection, rated at 10 A and 0.01 A (10 mA) sensitivity for 240 V. It combines the functions of a residual current device (RCD) and a miniature circuit breaker (MCB) to provide comprehensive protection against electrical faults. Typical applications include residential and commercial installations where it safeguards both circuits and connected devices from electrical hazards like ground faults and short

Type	RCBO
Current Rating	10a
Voltage Rating - AC	240V AC
Actuator Type	Toggle
Tripping Characteristics	C
Ambient temperature during operating	-25 - 60°C
Anti-nuisance tripping version	false
Built-in depth	44mm
Concurrently switching neutral conductor	true
Connectable conductor cross section multi-wired	1 - 10mm²
Connectable conductor cross section solid-core	1 - 16mm²
Current limiting class	3
Current Ratng	10A
Degree of protection (IP)	IP20
Depth	73mm
Differential current rating	0.01A
Dim	(W x H x D) 36 x 85 x 73 mm
Disconnection characteristic	Other
Flush-mounted installation	false
Frequency	50 Hz
Height	85mm
Leakage current type	A
Number of pins	2
Number of poles (total)	2
Number of protected poles	1
Overvoltage category	3
Pollution degree	3
Power loss	2.9W
Rated current	10A
Rated fault current	0.01A
Rated impulse withstand voltage Uimp	4kV
Rated insulation voltage Ui	400V
Rated short-circuit breaking capacity according to EN 61009	6kA
Rated short-circuit breaking capacity according to IEC 60947-2	N/A
Rated short-circuit breaking capacity Icn according to EN 61009-1	6kA
Rated voltage	230V
Surge current capacity	0.25kA
Switch-off Capacity	6kA
Voltage Rating	220-240 V/AC 50 Hz
Voltage type	AC
Width	36mm
Width in number of modular spacings	2
With interlocking device	true
