Saia V4NST7YRUL Microswitch 250VAC 5A ON/(ON) IP67 Watertight Sub-Miniature

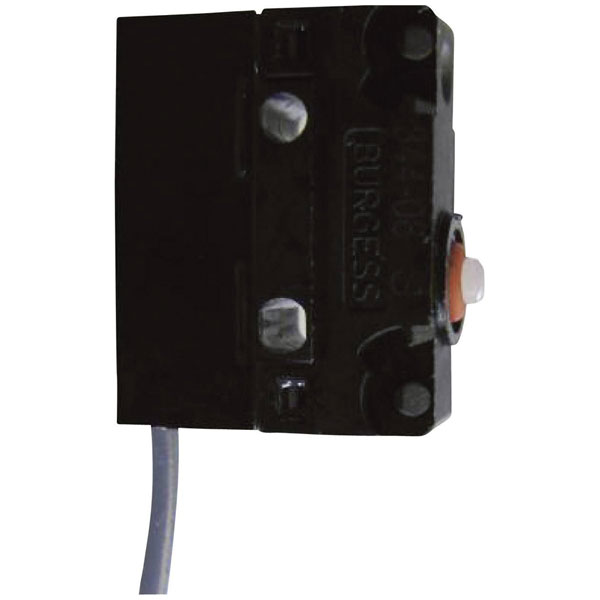

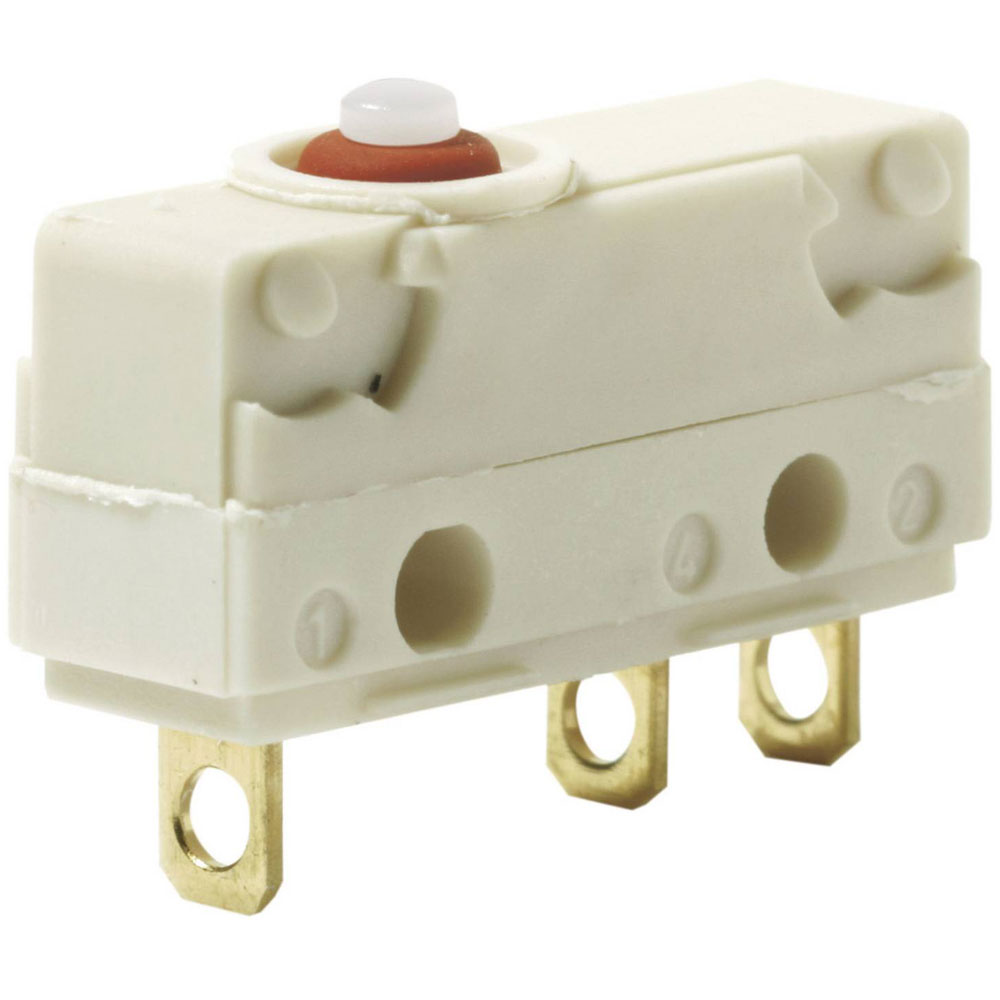

Image Representative of Range

Saia V4NST7YRUL Microswitch 250VAC 5A ON/(ON) IP67 Watertight Sub-Miniature

Saia
Standard range
Order Code:

10-5155

Brand: Saia MPN: V4NST7YRUL EAN-13: 2050000382635
Qty Unit Price (Ex VAT)
1+ £5.45
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
68 in stock, despatched in 4 working days

The Saia V4NST7YRUL microswitch is designed for momentary operation with a rating of 250 V AC and 5 A. It features an IP67 rating, making it suitable for dustproof and waterproof applications. This microswitch is ideal for use in precision mechanics, automation systems, and control panels.
Type Microswitch
Contact material Ag
Contact type 1 change-over
Dim (L x W x H) 6.4 x 20 x 10.3 mm
Functions momentary
Height 10.3mm
IP rating IP67
Length 6.4mm
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 1 V4NST7YRUL
Misc Attribute 2 1 changer
Operation type Lever
Switch position 1 x On/(On)
Switching capacity 5 A/250V AC
Switching current (max.) 5A
Switching voltage 250V AC
Temperature range -40 - +85°C
Width 20mm
