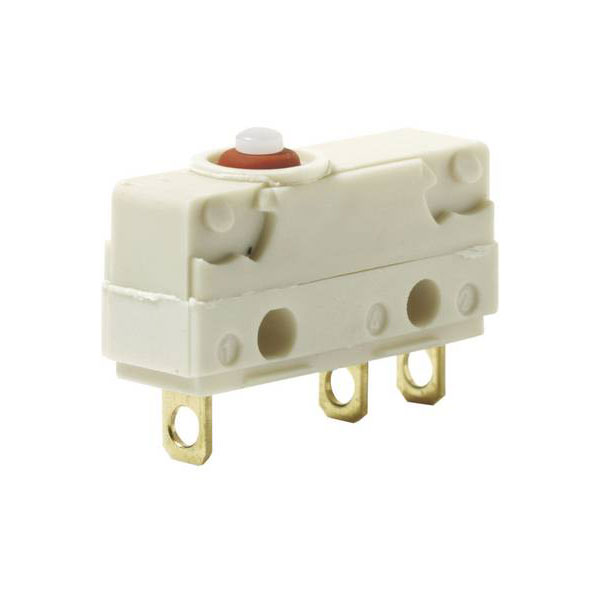

Saia V4NST7YCUL Microswitch 250VAC 5A IP67 Sub-Miniature Watertight

The Saia V4NST7YCUL microswitch is designed for applications requiring a momentary on/(on) action and operates at 250 V AC with a current rating of 5 A. This IP67-rated miniature switch ensures reliable performance even in challenging environments, thanks to its sub miniature size of 20x10.3x6.4 mm. It's commonly used in areas such as machinery controls, household appliances, and automotive applications where a compact and dependable switch is essential.

Type	Microswitch
Contact Configuration	SPDT
Switch Function	momentary
Current Rating (Amps)	5A
Voltage Rating - AC	250 VAC
Contact Material	Ag
Contact Type	1 change-over
Dim	(L x W x H) 6.4 x 20 x 10.3 mm
Height	10.3mm
IP Rating	IP67
Length	6.4mm
Max. temperature	+85°C
Min. temperature	-40°C
Misc Attribute 2	1 changer
Switch position	1 x On/(On)
Switching Capacity	5 A/250V AC
Switching Voltage	250V AC
Temperature Range	-40 - +85°C
Width	20mm
