Saia V4NST7UL Microswitch 250V 5A On/(On) IP67 UL Rated Watertight

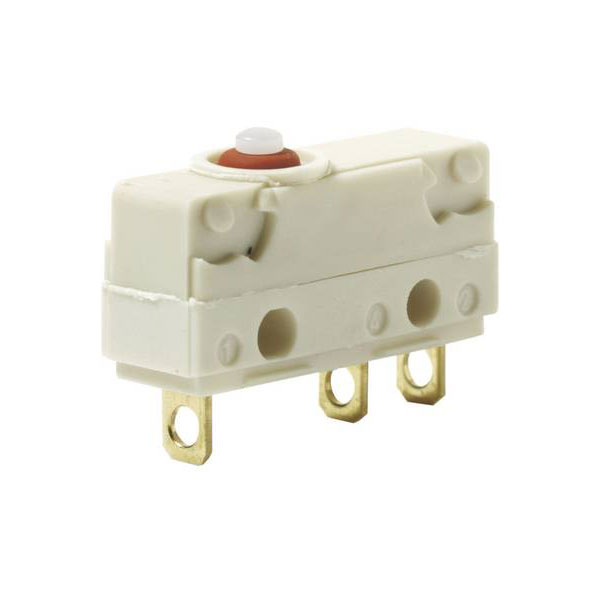

Image Representative of Range

Saia V4NST7UL Microswitch 250V 5A On/(On) IP67 UL Rated Watertight

Saia
Order Code:

10-5152

Brand: Saia MPN: V4NST7UL EAN-13: 2050000382598
Qty Unit Price (Ex VAT)
2+ £3.20
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
142 in stock, despatched in 4 working days

The Saia V4NST7UL microswitch is a miniature switch capable of handling 250 V AC and 5 A, designed for momentary operation with an IP67 rating for water and dust resistance. Its compact dimensions of 20x10.3x6.4 mm make it suitable for applications requiring limited space. Typically used in industrial settings, this component is ideal for precise control in machinery and equipment.
Type Microswitch
Switch Function momentary
Current Rating (Amps) 5A
Contact Material Ag
Contact Type 1 change-over
Dim (L x W x H) 6.4 x 20 x 10.3 mm
Height 10.3mm
IP Rating IP67
Length 6.4mm
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 1 1 changer
Switch position 1 x On/(On)
Switching Capacity 5 A/250V AC
Switching Voltage 250V AC
Temperature Range -40 - +85°C
Width 20mm
