Rohde & Schwarz 5601.8002.05 NGA142 Bench PSU 100V 2A 80W 2 Outputs

Rohde & Schwarz
Order Code:

10-4946

Brand: Rohde & Schwarz MPN: 5601.8002.05 EAN-13: 4250138110072
Qty Unit Price (Ex VAT)
1+ £2001.14
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 available to back orderBack-order availability date - 09/01/2026

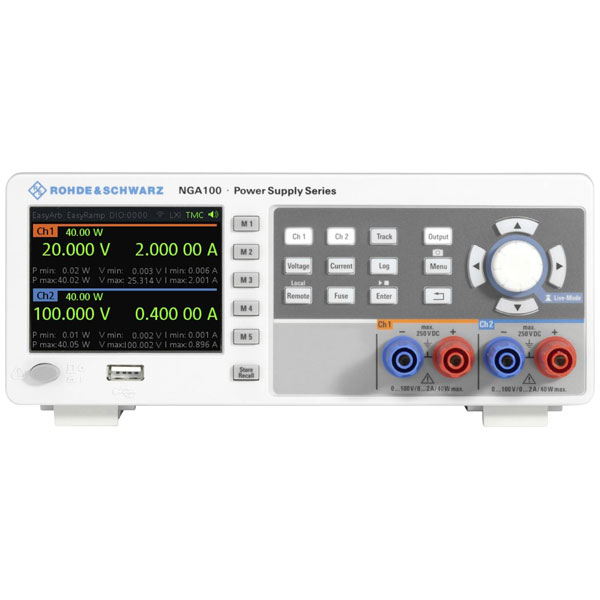

The Rohde & Schwarz NGA142 is a programmable laboratory power supply unit with adjustable voltage, featuring maximum outputs of 100 V and 2 A, and a power capacity of 80 W. It is suitable for industrial and laboratory use, with dual outputs and remote control capability. This bench PSU is ideal for applications requiring precision and flexibility in voltage and current settings.
Type Bench PSU (adjustable voltage)
Output Voltage 100V
Number of Outputs 2
Power Rating 80W
Length 448mm
Calibrated to Manufacturer's standards (no certificate)
Dimensions (L x W x H) 448 x 222 x 97 mm
Height 97mm
Inputs 110 V/AC 5 A, 250 V IEC 60127-2/5 T
115 V/AC 5 A, 250 V IEC 60127-2/5 T
230 V/AC 2.5 A, 250 V IEC 60127-2/5 T
Mains Supply IEC 320 C16
Max. output current 2A
Max. temperature +5°C
Min. temperature +40°C
Misc Attribute NGA142
Output current 2 (max.) 4A
Output voltage 2 (max.) 200V
Width 222mm
