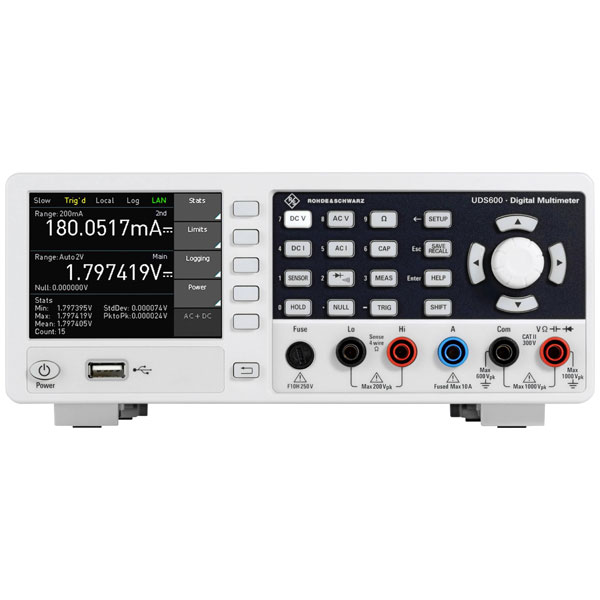

Rohde & Schwarz 3658.6470.05 is a precision bench multimeter designed for high-accuracy voltage measurements in laboratory and industrial settings. This model, which is also known as 3443515 - Rohde & Schwarz 3658.6470.05, features a digital display capable of measuring up to 1000 V DC and 300 V AC, ensuring it meets rigorous electrical testing needs. With its robust construction and precise readout capabilities, it is ideally suited for applications such as calibration laboratories, electronic circuit design testing, and quality assurance processes. Its ability to deliver consistent and accurate results makes it an indispensable tool for engineers requiring reliable voltage measurement in a variety of professional scenarios.
| Type |
R&S®UDS600-G |
| A AC reading range (min.) |
20mA |
| A DC reading range (max.) |
10A |
| Amperage reading range AC (max.) |
10A |
| Amperage reading range DC (min.) |
20mA |
| Basic accuracy |
0.0075% |
| Current reading |
AC/DC |
| Dimensions |
(L x W x H) 291 x 222 x 97 mm |
| Display |
Digital |
| Frequency Range |
5 Hz - 100kHz |
| Height |
97mm |
| Length |
291mm |
| Measurement type (details) |
True RMS |
| Power supply (details) |
115 - 230V AC |
| Product Type |
Bench multimeter |
| Reading range - capacity |
5 nF - 500 μF |
| Reading range - resistance |
200 Ω - 250mΩ |
| Temperature |
Resolution 0.1°C |
| V AC reading range (max.) |
750V |
| V AC reading range (min.) |
250mV |
| Voltage DC reading range (max.) |
1000V |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
250mV |
| Weight |
2.7kg |
| Width |
222mm |
