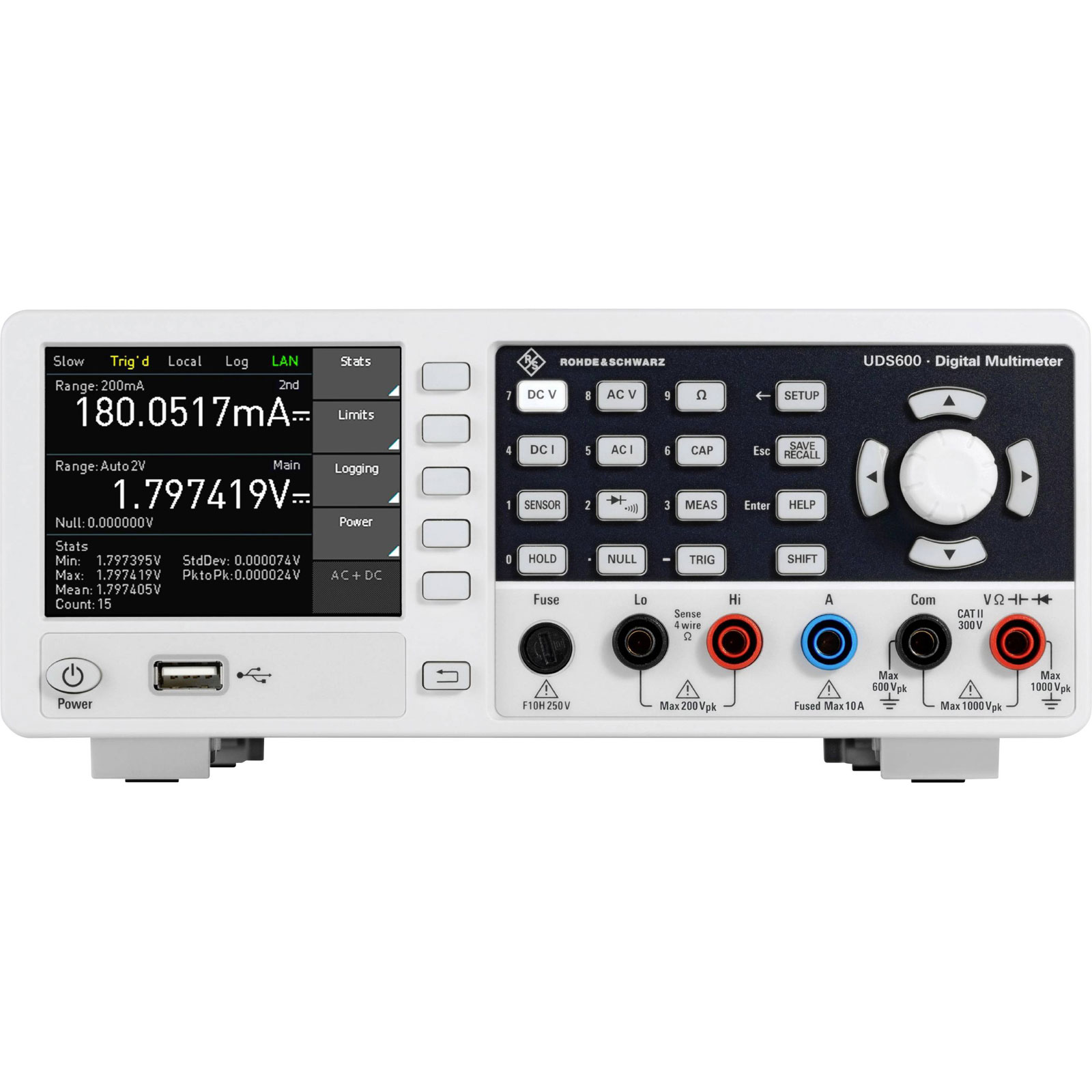

Rohde & Schwarz 3658.6470.03 R&S®UDS600 Bench multimeter offers a precise digital display for accurate measurement tasks, ideal for engineering professionals requiring reliable data in laboratory settings. This product, also referred to as 3443514 - Rohde & Schwarz 3658.6470.03, excels with its high measurement accuracy and versatile range, making it suitable for detailed circuit analysis, component testing, and electrical engineering investigation. Its robust design ensures durability and precision in diverse applications, including quality control, R&D laboratories, and automated testing setups. With the capacity to handle complex measurement tasks, this multimeter is an essential tool for engineers aiming to optimise their diagnostic and testing capabilities.
| Type |
R&S®UDS600 |
| A AC reading range (min.) |
20mA |
| A DC reading range (max.) |
10A |
| Amperage reading range AC (max.) |
10A |
| Amperage reading range DC (min.) |
20mA |
| Basic accuracy |
0.0075% |
| Current reading |
AC/DC |
| Dimensions |
(L x W x H) 291 x 222 x 97 mm |
| Display |
Digital |
| Frequency Range |
5 Hz - 100kHz |
| Height |
97mm |
| Length |
291mm |
| Measurement type (details) |
True RMS |
| Power supply (details) |
115 - 230V AC |
| Product Type |
Bench multimeter |
| Reading range - capacity |
5 nF - 500 μF |
| Reading range - resistance |
200 Ω - 250mΩ |
| Temperature |
Resolution 0.1°C |
| V AC reading range (max.) |
750V |
| V AC reading range (min.) |
250mV |
| Voltage DC reading range (max.) |
1000V |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
250mV |
| Weight |
2.7kg |
| Width |
222mm |
