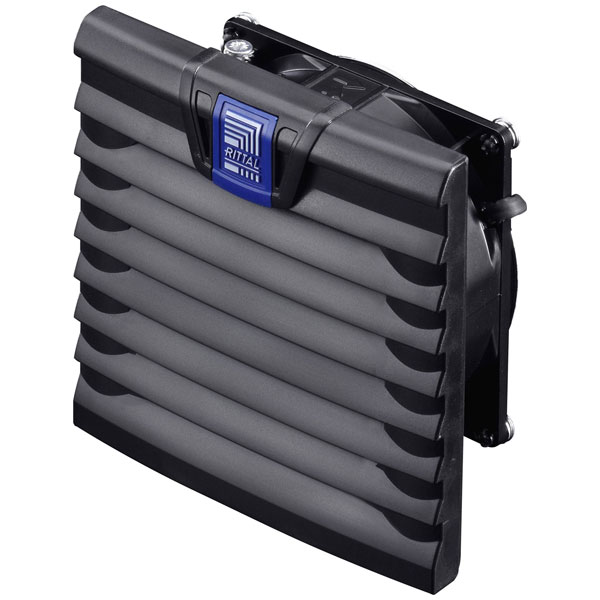

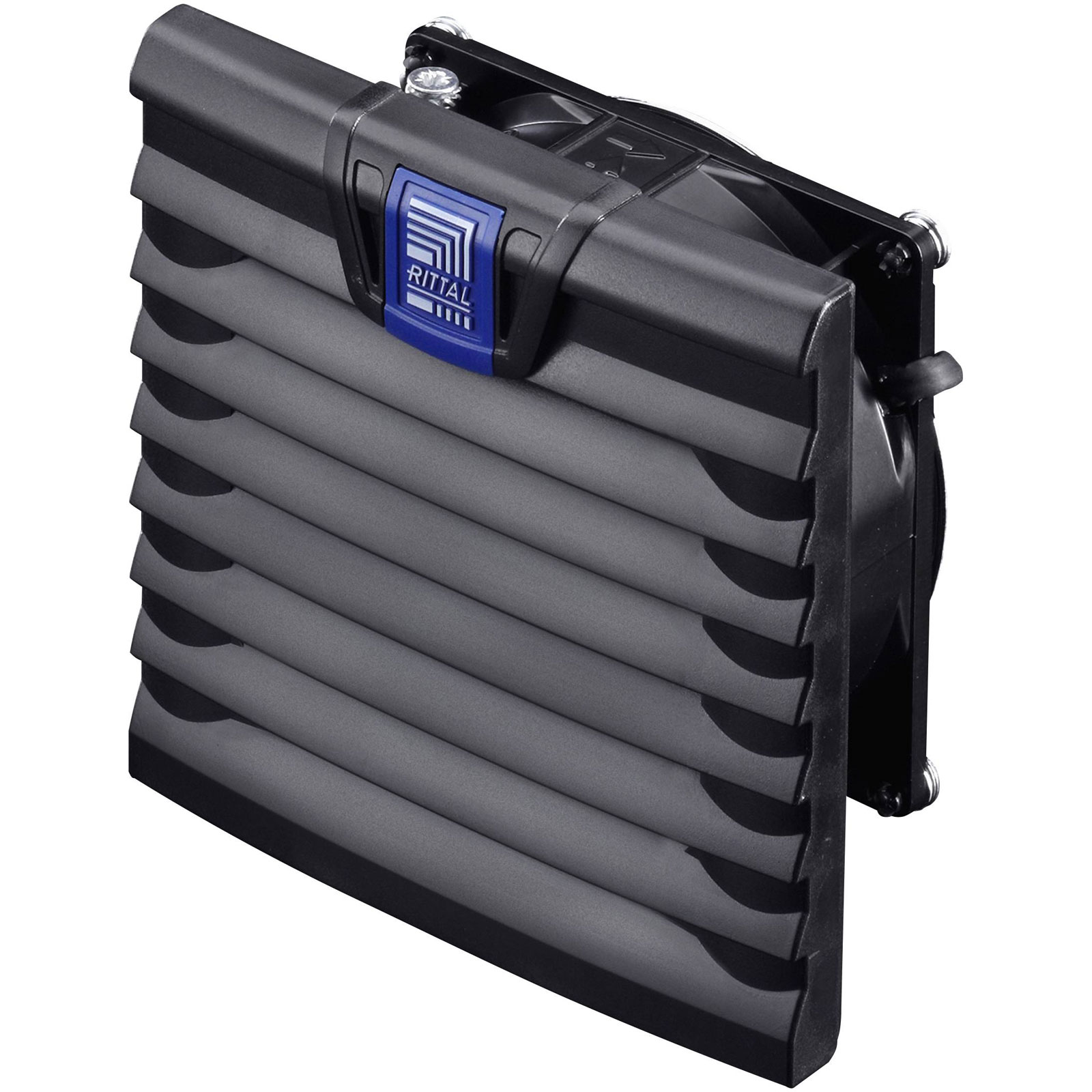

Rittal 3237108 SK Filter Fan TopTherm 116.5x116.5x16mm 20/25m³/h 230V

The Rittal SK 3237.108 is a fan and filter unit measuring 116.5 x 116.5 x 16 mm, designed for effective ventilation in electrical enclosures. It helps control temperature within switchboards, enhancing equipment reliability and performance. Typical applications include maintaining optimal operating conditions in industrial and commercial settings.

Type	Fan and filter
Voltage	230 V AC
Dimensions	(W x H x D) 116.5 x 116.5 x 16 mm
Air Flow	20m³/h
Built as slide-in ventilator	FALSE
Colour	Grey
Depth	16mm
Height	116.5mm
IP Rating	IP54
Max. operating voltage	230V AC
Min. operating voltage	230V AC
Misc Attribute	SK 3237.108
Number of fans	1
Operating voltage AC 50 Hz	230-230V
Operating voltage AC 60 Hz	230-230V
Roof ventilator	FALSE
Suitable for wall built-in	FALSE
Voltage type	AC
Weight	0.000
Width	116.5mm
