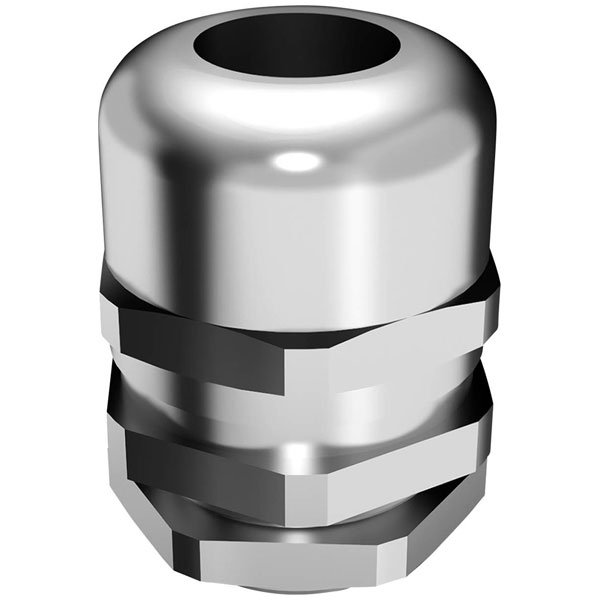

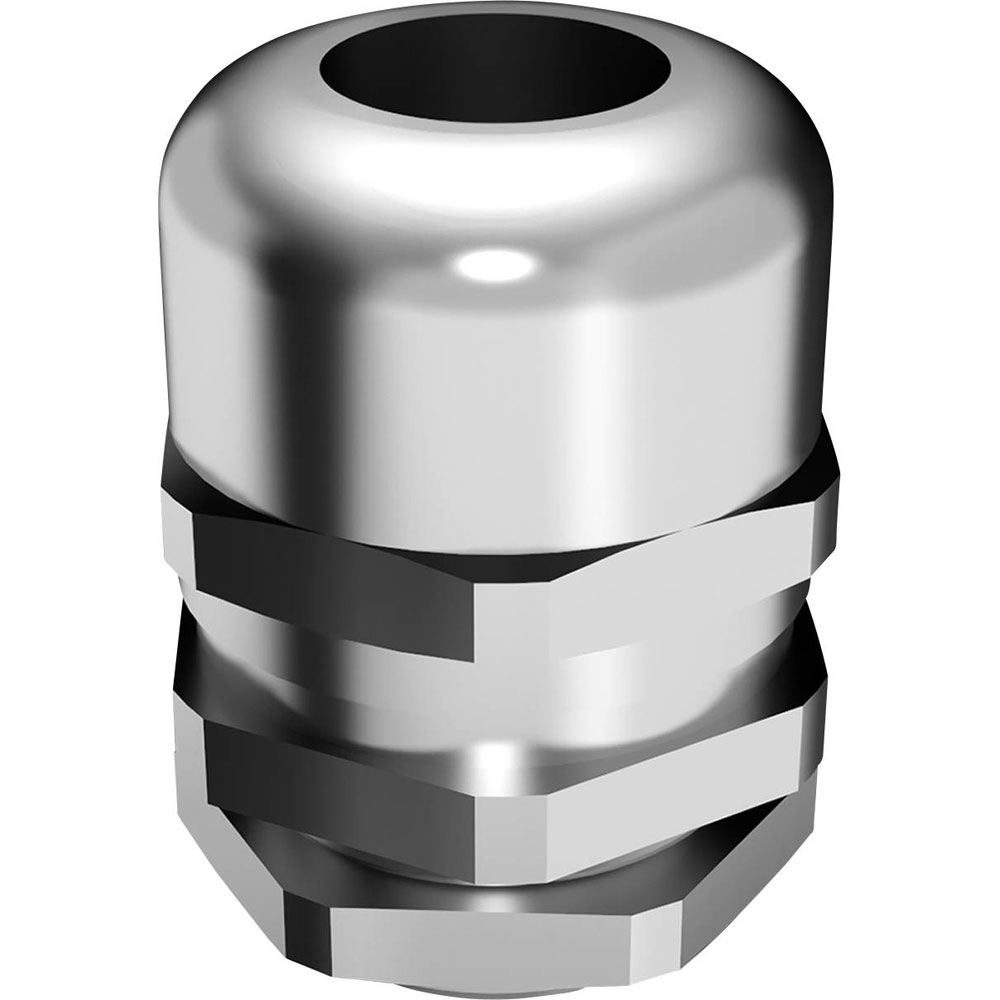

Rittal 2411.811 Cable Gland M16 Brass 1pc

The Rittal 2411.811 cable gland is a brass M16 component ideal for securing and sealing cables. It is particularly suited for use in electrical enclosures to prevent dust and moisture ingress. Typically employed in industrial and commercial environments, it provides robust protection for wiring systems.

Thread Size	M16
Colour	Brass
Material	Brass
IP Rating	IP68
Type	Cable gland
Bend Radius Protection/Trumpet Flare	No
Clamp Ø	5mm
EMC-version	No
Explosion-tested version	No
External thread	M16
Flat cable sealing	No
Glass fibre reinforced	No
Halogen free	No
Height	28mm
Hexagon angular dimension	17mm
Locknut Included	Yes
Material Grade	Brass
Maximum Temperature	+100°C
Min. temperature	-40°C
Model Type	Other
Multi cable sealing	No
Nominal Thread Size Inch/Gas Pipe Thread	Other
Nominal Thread Size Metric/PG	16
Screened	No
Separable (split) screw gland	No
Shock resistant	Yes
Snapping in opening	No
Surface protection	Nickel-plated
Terminal Ø (max.)	10mm
Thread Length	6mm
Thread Type	PG
Type of sealing	Sealing ring
Weight	0.000
With strain relief	No
Wrench width	17mm
