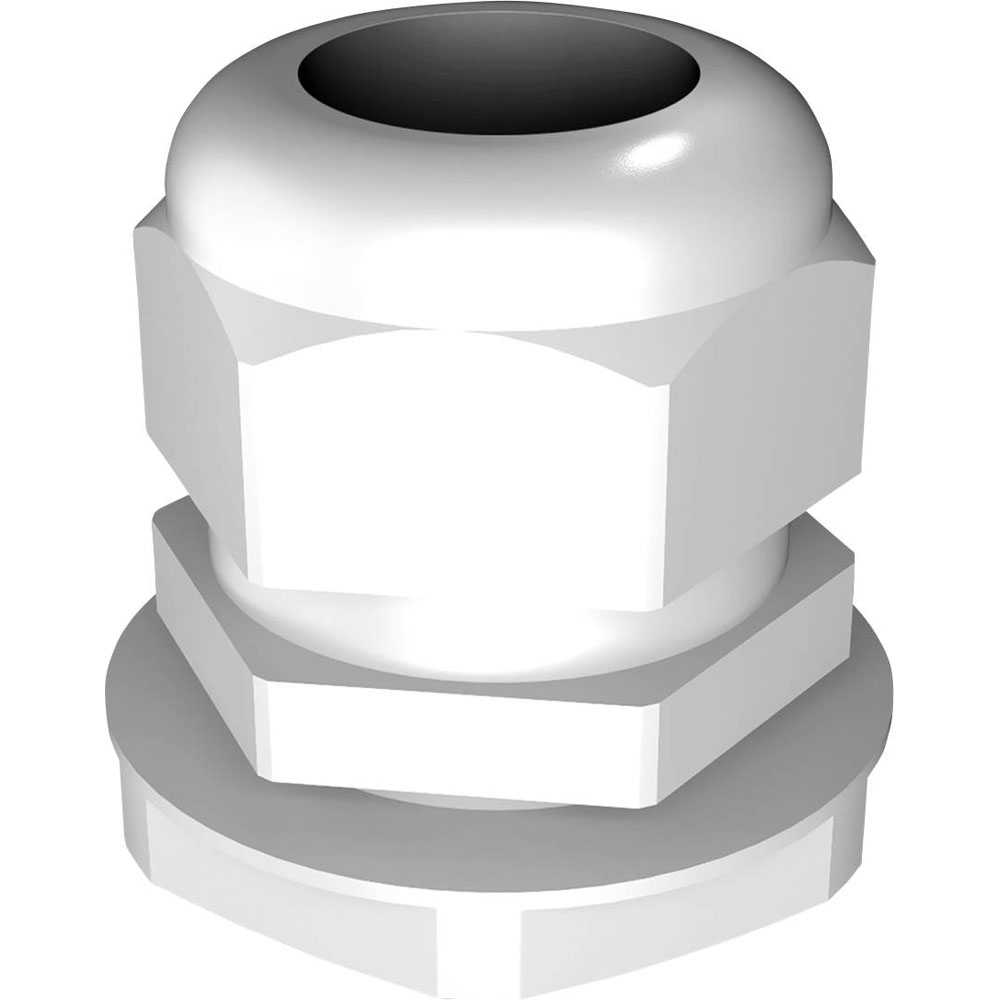

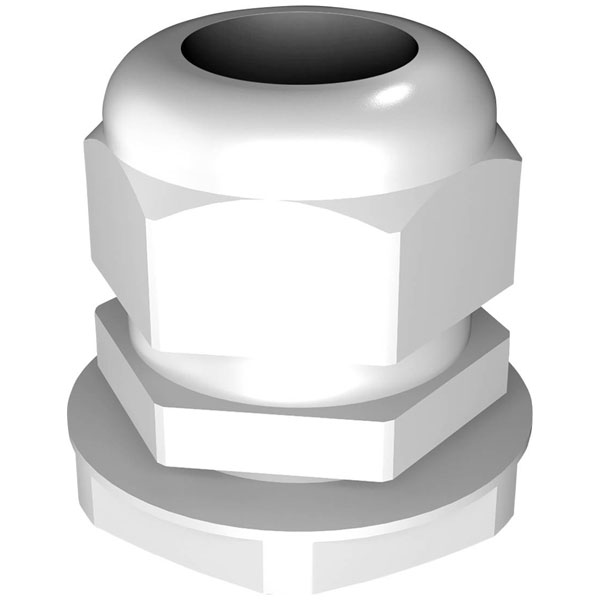

Rittal 2411.631 Cable Gland M25 Polyamide Grey-white RAL 7035 1pc

The Rittal 2411.631 cable gland is made of durable polyamide and comes in a grey-white colour matching RAL 7035. It is designed for use with M25 cables and provides secure sealing and strain relief. Ideal for electrical enclosures, it ensures protection in industrial or networking environments.

Thread Size	M25
Colour	Grey - white
Material	Polyamide
IP Rating	IP68
Type	Cable gland
Bend Radius Protection/Trumpet Flare	No
Clamp Ø	10mm
EMC-version	No
Explosion-tested version	No
External thread	M25
Flat cable sealing	No
Glass fibre reinforced	No
Halogen free	No
Height	35.5mm
Hexagon angular dimension	17mm
Locknut Included	Yes
Material Grade	Other
Maximum Temperature	+100°C
Min. temperature	-30°C
Model Type	Straight
Multi cable sealing	No
Nominal Thread Size Inch/Gas Pipe Thread	Other
Nominal Thread Size Metric/PG	25
RAL Number	7035
Screened	No
Separable (split) screw gland	No
Shock resistant	Yes
Snapping in opening	No
Terminal Ø (max.)	17mm
Thread Length	6mm
Thread Type	PG
Type of sealing	Sealing ring
Weight	0.000
With strain relief	No
Working temperature	-30°C - 100°C
Wrench width	17mm
