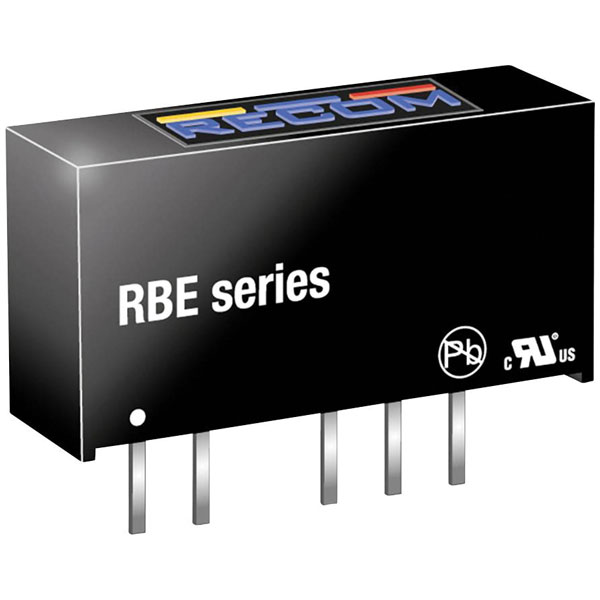

RECOM RBE-0505S DC/DC converter 200 mA 1 W

This exceptional converter boasts a 1 W output power and a 200 mA current rating, making it perfect for a wide range of applications, from industrial automation to automotive and beyond. With its robust construction, it ensures stable performance in challenging environments. The RBE-0505S features advanced thermal management, protection against overcurrent and overheating, and offers excellent regulation over varying loads. Plus, its compact size allows for easy integration into any design

Type	Converter
Dim	(L x W x H) 19.6 x 6 x 10.2 mm
Enclosure	SIP 7
Height	10.2mm
Input voltage (max.)	5V
Insulation voltage	1000V
Length	19.6mm
Max. output current	200mA
Min. input voltage	5V
Misc Attribute	RBE-0505S
No. of outputs	1
Output current (max.) - rounded	200mA
Output voltage (max.)	5V
Output voltage (min.)	5V
Power	1W
RoHS-compliant	Yes
Width	6mm
