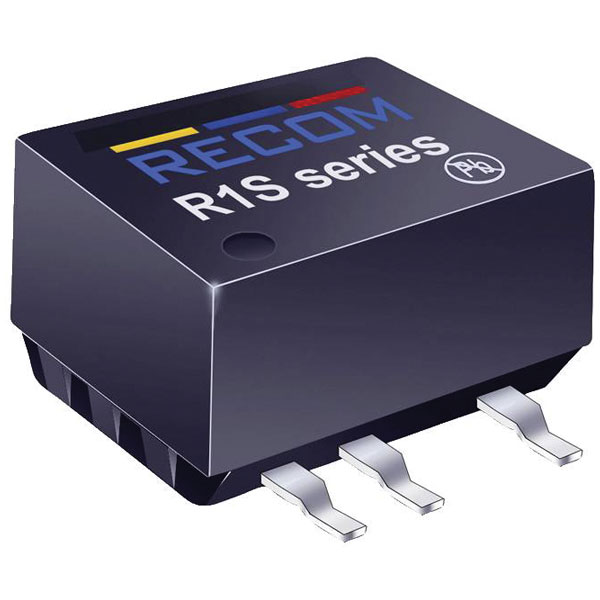

RECOM R1S-0509 DC/DC converter 9 111 mA 1 W

Delivering a reliable 9V output with a maximum current of 111 mA, this compact 1W converter ensures optimal efficiency and stability in a variety of electronic systems. Engineered for rugged environments, it features a wide input voltage range and minimal ripple, making it the perfect solution for industrial, telecommunications, and medical applications. With its robust protection features and ease of integration, the R1S-0509 not only saves space but also simplifies your design process.

Type	Converter
Dim	(L x W x H) 12.75 x 10.7 x 6.7 mm
Enclosure	SMD 5
Height	6.7mm
Input voltage (max.)	5.5V
Insulation voltage	1000V
Length	12.75mm
Max. output current	111mA
Min. input voltage	4.5V
Misc Attribute	R1S-0509
No. of outputs	1
Output current (max.) - rounded	111mA
Output voltage (max.)	9V
Output voltage (min.)	9V
Output voltages	9
Power	1W
RoHS-compliant	Yes
Width	10.7mm
