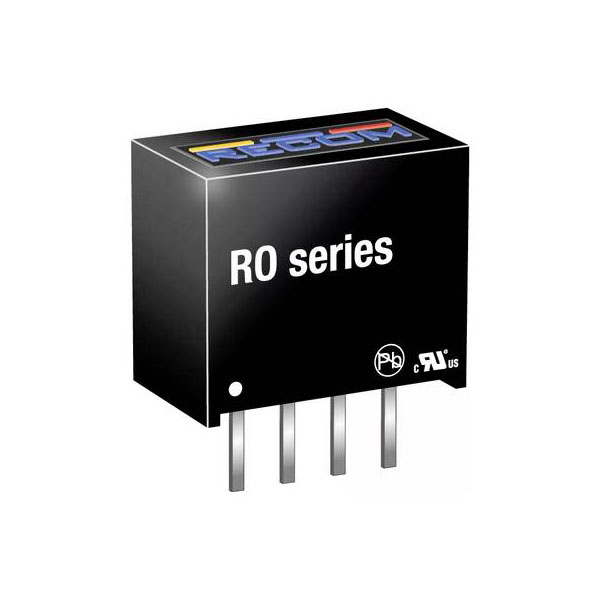

Recom 10016220 RO-3.305S/E 1W DC/DC Converter 3.3V In 5V Out

Name: Recom 10016220 RO-3.305S/E 1W DC/DC Converter 3.3V In 5V Out
Brand: Recom
Price: 5.90 GBP
Availability: InStock

Standard range

Order Code:

49-7127

Brand: Recom MPN: RO-3.305S/E EAN-13: 2050001795564

RoHS Compliant
Country of Origin: Taiwan
Free UK shipping available
View Full Product Range (13)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£5.90
5+	£5.82
10+	£5.72

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

5 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

A Recom unregulated DC/DC converter from the RO/E series. This single output converter is supplied in the standard SIP4 package style. The converter has been designed to offer exceptionally high efficiency at low loads, an extended operating temperature range and low deviation (10% to 100% load). It is ideal for use in applications with a restricted energy budget, and industrial applications where a high efficiency level is required. This DC/DC Converter has a High Efficiency up to 84% (/E).

Accuracy: 1 %
Grid pitch: 2.54mm
Insulation voltage: 1000V DC
Output current: 200mA
Specification: SIP4
High efficiency: 85%
Operating Temperature from -40°C to +85°C
Dimensions: 11.5(L) x 6.0(W)mm
Type: DC to DC Converter RO/E Series
Manufacturer's part: RO-3.305S/E

Mounting Style	SIP-4
Number of Outputs	1
Output Current Max	200mA
Output Current Min	N/A
Output Voltage Max	5V
Output Voltage Min	N/A
Power Rating	1W
Supply Voltage Range	3.3V
Temperature Range	-40 to +85°C
