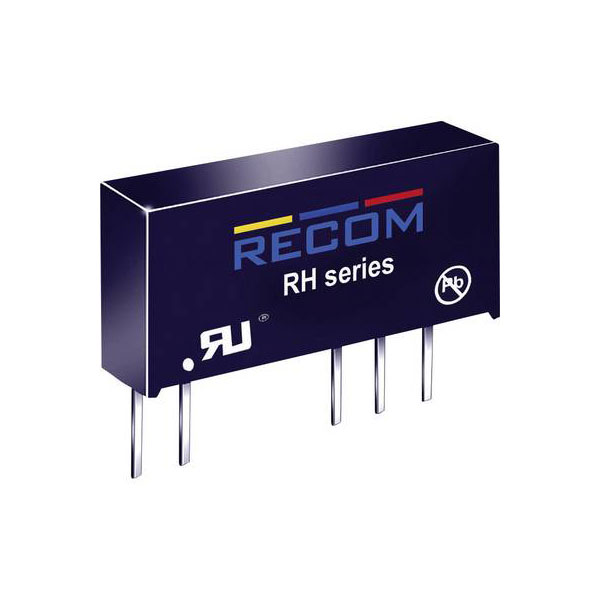

This Recom RH-0515D is a Dual Output 1W DC/DC Converter from the RH Series . The industrial SIP 7 converter is supplied with the high isolation of 3KVDC and an extended operating temperature range covering -40°C to +90°C. The converter is EN-60601-1 certified, making it suitable for medical as well as IGBT driver applications .
Input voltage: 5V DC Output voltage: Dual 15V DC Output power: 1W SIP 7 Package Material: UL94V-0 Operating Temperature from -40°C to +85°C Weight: 2.6g Efficiency: 80-84% Dimensions: 19.65(L) x 6.0(W)mm 3kVDC Isolation Type: DC-DC Converter RH Series Manufacturer's part: RH-0515D
Mounting Style
SIP-7
Number of Outputs
2
Output Voltage Min
-15V
Output Voltage Max
15V
Output Current Min
-33mA
Output Current Max
33mA
Power Rating
1W
Supply Voltage Range
5V
Temperature Range
-40 to +85°C
