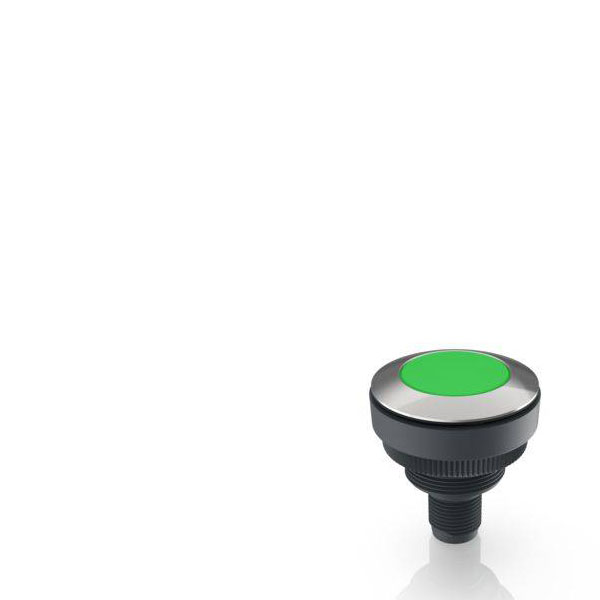

RAFI 1.11.011.001/0550 RAMO 30 Pushbutton 35V 0.1A Momentary 34.5x34.5x40mm

The RAFI 1.11.011.001/0550 Pushbutton is a momentary switch from the RAMO 30 series, featuring dimensions of 34.5 x 34.5 x 40 mm. It operates at 35 V and 0.1 A, making it suitable for low-current applications. This pushbutton is commonly used in control panels and electronics where a temporary contact is needed.

Type	Pushbutton
Contact Configuration	None
Switch Function	1 maker
Current Rating	0.1A
Mounting	Panel
Panel Cutout Dimensions	30.3
Actuating Force	5N
Connection	M12 plug
Contact Material	Gold
Dim	(L x W x H) 34.5 x 34.5 x 40 mm
Height	40mm
Length	34.5mm
Lighting Type	incl. lighting
Max. switching capacity	1W
Misc Attribute	RAMO 30
Recess depth	36.4mm
Recess Diameter	30.3mm
Shape	Round
Switching Voltage	35V
Width	34.5mm
