R-TECH 524338 Instrument Case ABS 300x200x75 Alu End Panel Vented

R-TECH
Standard range
Order Code:

52-4338

Brand: R-TECH MPN: 524338 EAN-13: 5053556005383
Qty Unit Price (Ex VAT)
1+ £14.78
5+ £13.50
10+ £12.42
20+ £11.79
40+ £11.40
75+ £11.05
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
28 in stock, despatched same dayAdditional quantity lead time 5 months

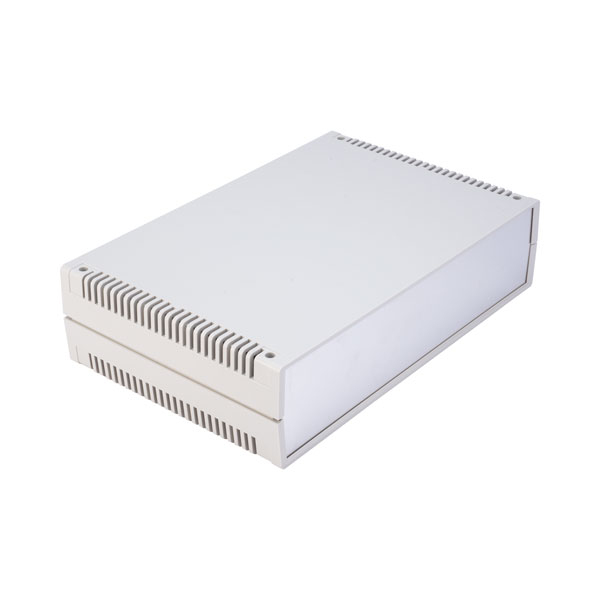

The R-TECH ABS Instrument Case, moulded from Light Grey plastic is a high quality, economically priced enclosure, designed to be suitable for various projects.

The case features removable aluminium end panels, ventilation slots and is secured together using the four screws provided. The internal design includes moulded PCB stand-offs and vertical card slot guides inside the side panels, allowing for horizontal or vertical PCB mounting. Threaded brass inserts, provided in the base allow repeated assembly and disassembly.
The enclosure provides ingress protection to IEC 60529, IP20 with a flammability rating of UL94-HB.

Ideally suited to housing test equipment, instrumentation, or similar applications.


  • Light Grey
  • Removable Aluminium end panels
  • Ventilation slots
  • Length: 300mm
  • Width: 200mm
  • Height: 75mm
  • 4 x Screw Fixings supplied
  • 4 x Self-adhesive Feet supplied

Planning to buy a range of enclosures for your latest project?


Colour Light grey
Enclosure Height 75mm
Enclosure Length 300mm
Enclosure Width 200mm
External Features Removable Aluminium end panels / ventilation
Internal Features PCB pillars and vertical card guides
Material ABS body / aluminium panels
Finish Matt
Flame Resistance UL94-HB
IP rating IP20
Type Instrument case
Weight 700
