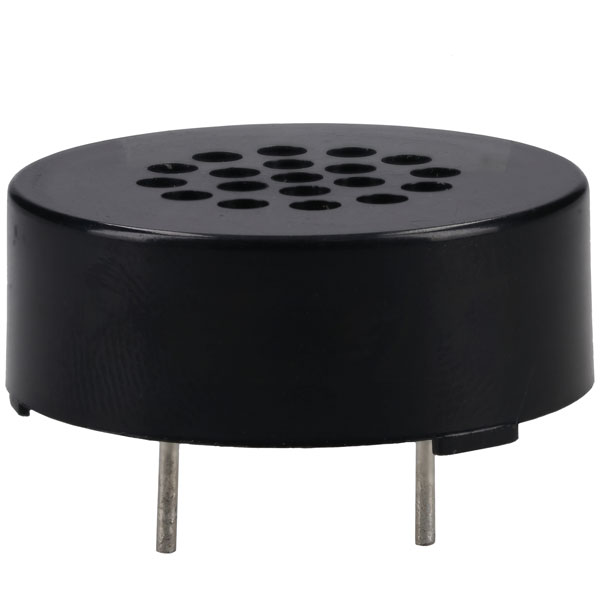

R-TECH 350073 Miniature Speaker 32ohm 23mm dia. Encased speaker with PCB pins

The R-TECH 350073 Miniature Speaker is a high-quality 32 Ohm mylar speaker, designed for versatile applications requiring clear and reliable sound reproduction. Encased in a durable housing with PCB pins for easy mounting, this miniature speaker is 23mm in diameter. It has a rated power of 0.1W, with a maximum power of 0.2W. This speaker operates efficiently within a frequency range of 1.8kHz to 4kHz, delivering a sound pressure level of 75dB.

Ideal for use in headsets, security systems, medical devices, and more. This miniature speaker combines compact design with robust performance.

• Mylar speaker for clear sound reproduction
• Speaker diameter: 23mm
• Rated Impedance: 32Ω ±15%
• Durable housing with PCB pins for easy mounting
• 23mm diameter for compact design
• Nominal Rated Power: 0.1W
• Maximum Power: 0.2W
• Frequency range: 1.8kHz to 4kHz
• Resonant frequency: 1.8kHz ±20Hz
• Sound output level @ 0.1W/0.1m: 75dB ±3dB
• Operating temperature: –20°C to +40°C
• Storage temperature: –40°C to +60°C
• Sound pressure level: 75dB
• Weight: 3g
