PULS QS10.DNET DIMENSION Power Supply 24V 8A 192W 1 Output DIN Rail

PULS
Order Code:

10-3238

Brand: PULS MPN: QS10.DNET EAN-13: 0875404000181
Qty Unit Price (Ex VAT)
1+ £304.14
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

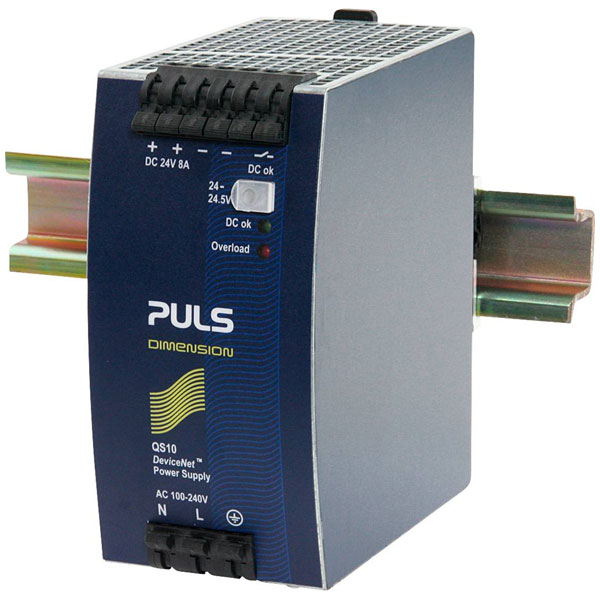

The PULS QS10.DNET is a din rail power supply unit providing 24 V output with a current of 8 A and a power of 192 W. Manufactured by PULS, it features a single output suitable for industrial applications. This rail-mounted PSU is ideal for providing stable power in industrial settings and control panels.
Type Power supply unit
Output Voltage 24V
Output Current 8A
Number of Outputs 1
Power Rating 192W
Connection Spring-loaded terminal
Dim (L x W x H) 117 x 60 x 124 mm
Efficiency 93.4%
Height 124mm
Input Voltage AC 100-240V (± 15%)
DC 110V-150V (-20%/+25%)
Input voltage (max.) 276V
Length 117mm
Max. operating temperature (derating) +60°C
Max. output current 8A
Max. temperature +70°C
Min. input voltage 85V
Min. temperature -25°C
MTBF 581.000h
Nominal Input Voltage 100 - 240 V/AC
Operating temperature (max.) +70°C
Operating temperature (min.) -25°C
Output type (power supply units) Adjustable
Phases 2
Width 60mm
