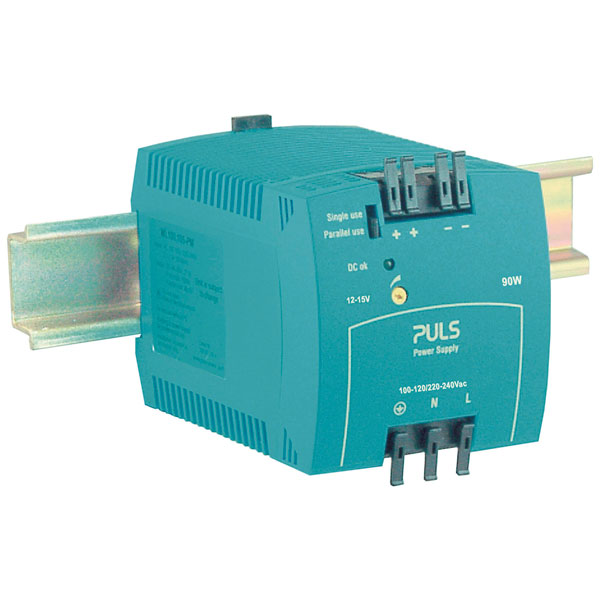

PULS ML100.102 MiniLine DIN Rail Power Supply 12V DC 7.5A 90W 1-Phase

This MiniLine power supply from PULS covers lower power requirements and is equipped with rugged plastic housing, both highly efficient and compact. The supply takes just seconds to install and offers superb reliability.
Features include: spring-loaded connecting terminals, robust plastic housing and worldwide approvals (UL, EN, CSA, CB Scheme) for industry and office/home.

• Input voltage range: 115/230 V AC, 220-375V DC
• 1 phase
• Output: 12V DC 7.5A 90W
• Switched Mode
• Termination type: Spring cage terminal
• Dimensions 73 x 75 x 103mm
• Manufacturer's part ML100.102

For more information on this PULS power supply, please see its datasheet.
DIN rail power supply

Type	Rail mounted PSU (DIN)
Number of Outputs	2
Power Rating	90W
1st secondary output voltage	230V
2nd secondary output voltage	230V
3rd secondary output voltage	230V
Input Voltage	115 - 230 CA
Maximum Temperature	+70°C
Nominal value output voltage 1	12V
Output	12V DC 7.5A 90W
Output Current	7.5
Output voltage stabilized	230V
Rated supply voltage AC 50 Hz	230V
Rated supply voltage AC 60 Hz	230V
Rated supply voltage DC	230V
Voltage type (supply voltage)	230V
