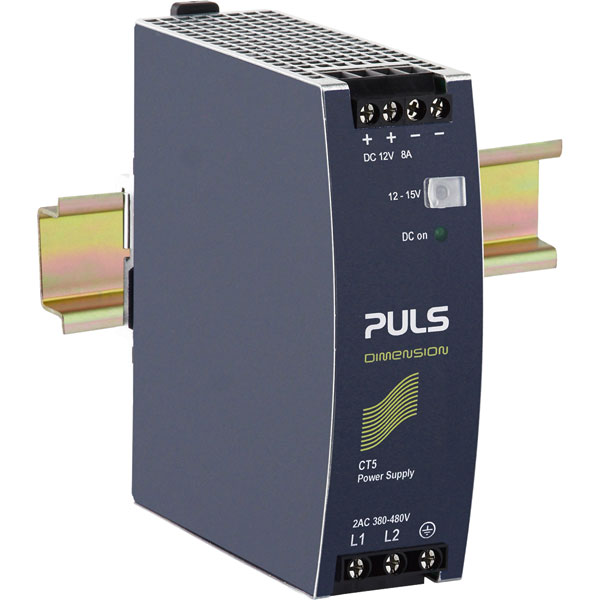

PULS CT5.121 Dimension DIN Rail Power Supply 12V DC 8A 96W 2-Phase

This DIN rail power supply from PULS is cost-efficient with no compromises in quality, reliability, size or power reserves.
Features include: two-phase input, adjustable output voltage, active power current limiting, full power from -25 to +70 °C and large screw terminals.

• Input voltage range: 323 - 552V AC
• 2 phase
• Output: 12V DC 8A 96W
• Termination type: Screw terminals
• Dimensions 40 x 124 x 117mm
• Manufacturer's part CT5.121

For more information on this PULS power supply, please see its datasheet.
DIN rail power supply

Type	Rail mounted PSU (DIN)
Number of Outputs	2
1st secondary output voltage	552V
2nd secondary output voltage	552V
3rd secondary output voltage	552V
Input Voltage	323 - 552 CA
Max. output current 1	8A
Max. output current 2	8A
Max. output current 3	8A
Maximum Temperature	+70°C
Nominal value output voltage 1	12V
Output	12V DC 8A 96W
Output Current	8
Output voltage stabilized	552V
Power Output	96W
Rated supply voltage AC 50 Hz	552V
Rated supply voltage AC 60 Hz	552V
Rated supply voltage DC	552V
Secondary voltage adjustable	552V
Voltage type (supply voltage)	552V
