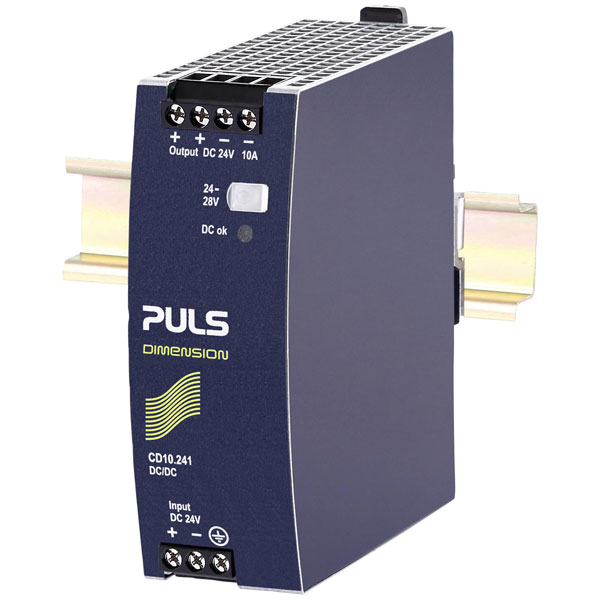

PULS CD10.241 DIMENSION DC/DC Converter 24V 240W DIN Rail 1piece

The PULS CD10.241 is a high-quality 24 V DC, 240 W DC/DC converter designed for industrial power applications. This versatile din rail power supply unit is ideal for integration into rail mount systems. It is commonly used in industrial settings where reliable power conversion is essential.

Type	DC/DC converter
Power Rating	240W
Depth	124mm
Dimensions (L x W x H)	124 x 42 x 117mm
Efficiency	94.2%
Height	117mm
Max. operating temperature (derating)	+60°C
Maximum input voltage [DC]	25V
Maximum Operating Temperature	+70°C
Maximum Temperature	+70°C
Min. temperature	-25°C
Minimum Input Voltage [DC]	18V
MTBF	731000h
Nominal Input Voltage	24 /DCV
Nominal value output voltage 1 [DC]	24V
Operating temperature (min.)	-25°C
Type of electric connection	Screw terminal
Width	42mm
