PTR Hartmann 54791080422D Terminal 0.75mm² 8-Pin Spring-Loaded Basalt Grey

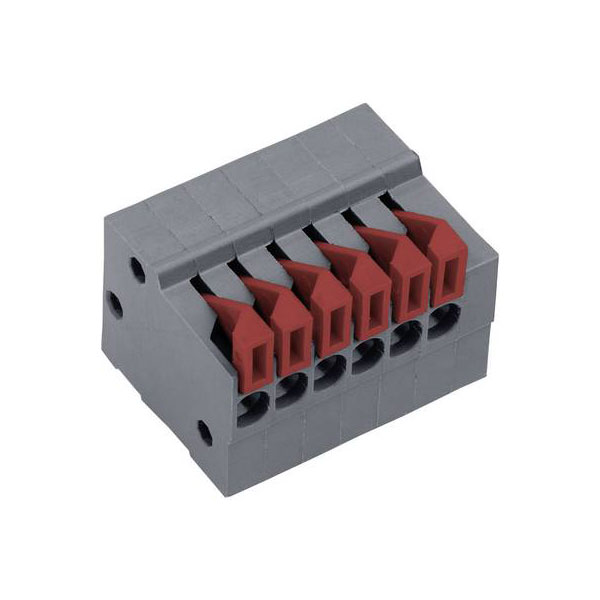

Image Representative of Range

PTR Hartmann 54791080422D Terminal 0.75mm² 8-Pin Spring-Loaded Basalt Grey

PTR
Order Code:

06-2917

Brand: PTR MPN: 54791080422D EAN-13: 2050001585318
Qty Unit Price (Ex VAT)
5+ £1.26
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
90 in stock, despatched in 4 working days

PTR Hartmann manufactures the 54791080422D spring-loaded terminal, featuring 0.75 mm² capacity and eight pins in basalt grey. This component is designed for printed circuit boards and is ideal for secure electrical connections, particularly in applications requiring easy assembly and disassembly. With its robust construction, it is suitable for consumer electronics, industrial automation, and telecommunication systems.
No. of Ways 8
No. of Levels 1
Voltage Rating 150V
Current Rating 6A
AWG (min.) 26
AWG max. 18
Connector orientation Parallel (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Factory colour Basalt grey
Height 16.20mm
Length 13.70mm
Min. stripping length 10mm
Misc Attribute AKZ4791/8KD-2.54-H
Pins per row 8
Series AKZ4791
Stripping length (max.) 10mm
Type Spring-loaded terminal
Width 22.86mm
Wire protection Yes
