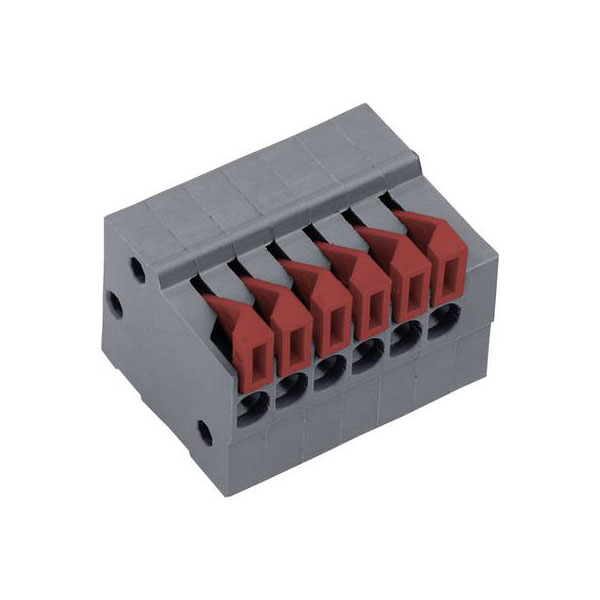

PTR Hartmann 54791060422E Spring-loaded Terminal 6 Pin Basalt Grey

Image Representative of Range

PTR Hartmann 54791060422E Spring-loaded Terminal 6 Pin Basalt Grey

PTR
Order Code:

06-2915

Brand: PTR MPN: 54791060422E EAN-13: 2050001585295
Qty Unit Price (Ex VAT)
5+ £0.915
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
466 in stock, despatched in 4 working days

The PTR Hartmann 54791060422E is a basalt grey, spring-loaded terminal with six pins designed for 0.75 mm² connections. This high-quality PCB connector is typically used in printed circuit boards for secure and reliable electrical connections. Ideal for a variety of electronic applications, it ensures robust connectivity in demanding environments.
Pitch 2.54mm
No. of Ways 6
Mounting Type Through Hole
Mounting Direction Vertical
Wire Gauge (AWG) 26 to 20 AWG
Wire Termination Screwless
AWG (min.) 26
AWG max. 18
Colour Grey
Connector orientation Parallel (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Current Rating 6A
Factory colour Basalt grey
Height 16.20mm
Length 13.70mm
Min. stripping length 10mm
Misc Attribute AKZ4791/6KD-2.54-H
No. of Levels 1
Pins per row 6
Series AKZ4791
Stripping length (max.) 10mm
Type Spring-loaded terminal
Voltage Rating 150V
Width 17.78mm
Wire protection Yes
