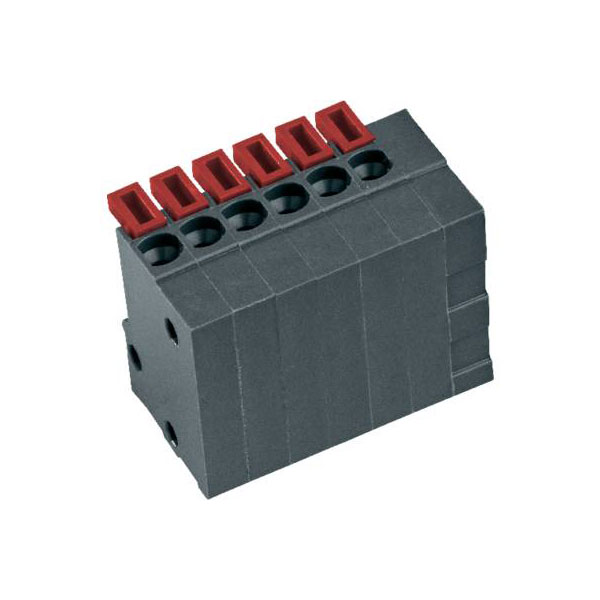

PTR Hartmann 54791060421E Spring-loaded Terminal 6 Pins Basalt Grey

Image Representative of Range

PTR Hartmann 54791060421E Spring-loaded Terminal 6 Pins Basalt Grey

PTR
Order Code:

06-2914

Brand: PTR MPN: 54791060421E EAN-13: 2050001585202
Qty Unit Price (Ex VAT)
5+ £0.935
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
67 in stock, despatched in 4 working days

PTR Hartmann manufactures the 54791060421E spring-loaded terminal, featuring six pins and supporting 0.75 mm² connections. This basalt grey screw terminal block is commonly used for connecting components on printed circuit boards. Ideal for applications requiring reliable electrical connections, it facilitates secure and efficient installation.
No. of Ways 6
No. of Levels 1
Voltage Rating 150V
Current Rating 6A
AWG (min.) 26
AWG max. 18
Connector orientation Perpendicular (to the PCB)
Contact Material Brass
Cross section (flexible) (max.) 0.75mm²
Cross section (flexible) (min.) 0.14mm²
Cross section (inflexible) (max.) 0.75mm²
Cross section (inflexible) (min.) 0.14mm²
CS 2.54mm
Enclosure material PBT
Factory colour Basalt grey
Height 17.10mm
Length 12.60mm
Min. stripping length 10mm
Misc Attribute AKZ4791/6KD-2.54-V
Pins per row 6
Series AKZ4791
Stripping length (max.) 10mm
Type Spring-loaded terminal
Width 17.78mm
Wire protection Yes
